Branson / ipc rf generator pm-112 04015-aa 13.560 mhz

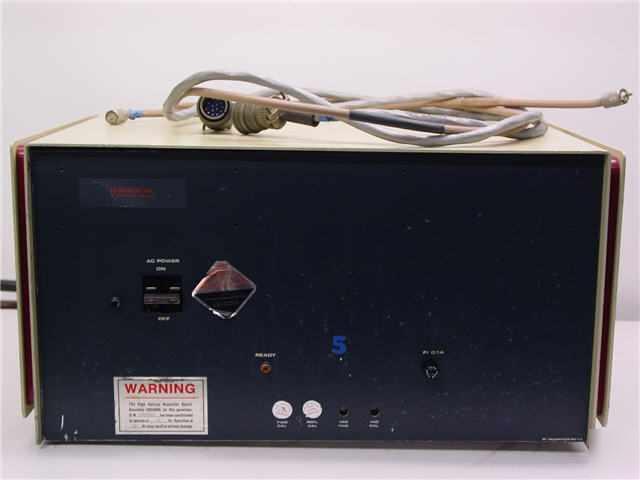

Branson / IPC RF Generator PM-112 04015-AA 13.560 MHz
BRANSON / IPC Model PM-112 RF Generator
* 208/240 Vac, Single Phase, 60 Hz,
* Output Frequency, 13.560 MHz +-
* 0.005%, crystal controlled
* Output Power, 0-1000W, continuously variable
* Output impedance, 50 Ohms, nonreactive
* RF Output connector, SO 259 ultrahigh frequency (UHF)
* Power Monitor, Forward and reflected RF power
* Rear panel connections, connector permits connection of a cable that carries two meter signals (Fwd and Ref power), and RF power control signals
* Dimensions, 22.5"W x 17"D x 11.75"H
