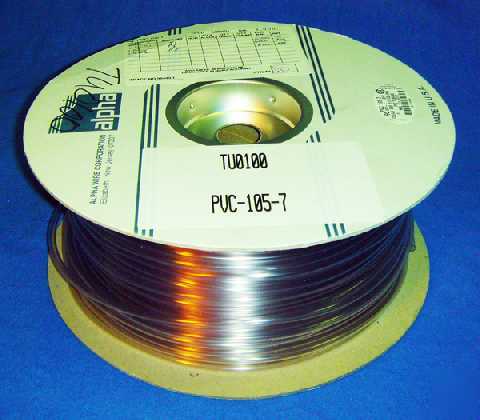

New alpha multi purpose pvc tubing 500 ft clear
ALPHA MULTI-PURPOSE PVC TUBING 500 FT NEW PVC-105-7
Nominal Inside Diameter: 0.148" or 3,76MM
Nominal Wall Thickness: 0.020" or 0,50MM
OPERATING TEMPERATURE: 20 C to 105 C
Size 24 to 1-1/2 Inches: Black, Clear
Size 2 Inches to 2-1/2 Inches: Black
Tensile Strength: 1800 psi, (127 kg/cm2)
Specific Gravity: Clear 1.25, Black 1.35
Flammability: Self-Extinguishing (UL VW-1)
Corrosive Effect: Non-Corrosive
Dielectric Strength: 800V/mil (315 kV/cm)
Volume Resistivity: 1011 ohm-cm
Resistance to Heat, Oil, and Abrasion
In accordance with NEMA standards, may contain more than one length. PVC-105-24 to
PVC-105-1 are available air spooled.
