> Expansion module EM235 analog combo (ai 3/aq 1X12 bits)

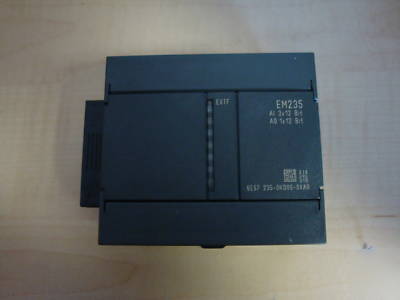

Expansion module EM235 analog combo (ai 3/aq 1X12 bits)
Bipolar Range -32000 to +32000
Voltage Output +-2% of full-scale
Current Output +-2% of full-scale
Voltage Output +-0.5% of full-scale
Current Output +-0.5% of full-scale
Maximum Drive @ 24 V User Supply
Input Filter Attenuation -3db @ 3.1 kHz
Resolution 12 bit A/D converter
Analog-to-Digital Conversion Time <250 usec
Analog Step Response 1.5 ms to 95%
Common Mode Voltage signal voltage plus common mode
Common Mode Rejection 40 db, DC to 60 Hz
5 VDC Logic Current 70 mA from base unit
External Power Supply 60 mA, plus output current of 20 mA
from base unit or external supply
(24 VDC nominal, Class 2 or DC
Power Supply Fault low voltage, on external 24 VDC
