Picmg cpu board rocky 3703EVR socket-370 base cpu board

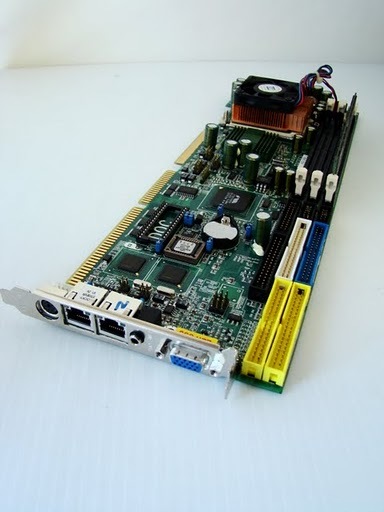

ROCKY 3703EVR PICMG CPU Board Socket-370 Base CPU Board with Dual LAN / VGA / Audio / IDE RAID
The ROCKY-3703EVR board is an ISA/PCI form factor board, which comes equipped with high performance Pentium III Processor and advanced high performance multi-mode I/O, designed for the system manufacturers, integrators, or VARs that want to provide all the performance, reliability, and quality at a reasonable price.
In addition, the ROCKY-3703EVR provides S3 Savage4 AGP4X VGA on board. The VGA chip is 3D graphics chipset, which provides up to 1920x1440x16-color resolution. The VGA on board 2 to 32MB frame buffer using system memory.
This board has a built-in DiskOnChip (DOC) Flash Disk Socket for embedded applications. The DOC Flash Disk is 100% software compatible with hard disks. Users can use any DOS command without any extra software utility. The DOC currently is available from 2MB to 144MB.
An advanced high performance super AT I/O chip VIA VT82C686B is used in the ROCKY-3703EVR board. Both onchip UARTs are compatible with the NS16C550. The parallel port and IDE interface are compatible with IBM PC/AT architecture.
The ROCKY-3703EVR uses dual Intel 82559 Fast Ethernet Multifunction PCI Controller as a LAN controller. Which is a fully integrated 10BASE-T/100BASE-TX LAN solution with high performance networking functions and low power features. The ROCKY-3703EVR uses the advanced VIA PM133/PL133 Chipset which is 100% ISA/PCI software compatible chipset with PCI 2.1 standard.
* CPU: Intel Celeron and Pentium III (FC-PGA) Processor, supports 66/100/133 MHz FSB
* BUS Interface: PCI/ISA bus, PICMG compliant
* BUS Speed: ISA : 8MHz, PCI: 33MHz
* Chipset: VIA PM133/PL133
* Real Time clock/calendar: VT82C686B
* RAM Memory: Three 168-pin DIMM sockets support SDRAM and VCM RAM module. The max. Memory is up to 1.5GB.
* ATA/100 IDE Interface: Up to four PCI Enhanced IDE hard drives. The ATA/100 IDE can handle data transfer up to 100MB/s. Compatible with existing ATA-2 IDE specifications its best advantage, so there is no need to do any changes for users current accessories.
* Floppy Disk Drive Interface: Supports up to two floppy disk drives, 5.25 (360KB and 1.2MB) and/or 3.5 (720KB, 1.44MB, and 2.88MB)
* Serial Ports: Two RS-232 ports with 16C550 UART (or compatible) with 16-byte FIFO buffer. Support up to 115.2Kbps. Ports can be individually configured to COM1, COM2 or disabled.
* Bi-directional Parallel Ports: Configurable to LPT1, LPT2, LPT3 or disabled. Supports EPP/ECP/SPP
* Hardware Monitor: Built-in to monitor power supply voltage and fan speed status
* IrDA Port: Supports Serial Infrared(SIR) and Amplitude Shift Keyed IR(ASKIR) interface
* USB Port: Supports Four USB ports for future expansion
* Watch-dog Timer: Software Programmable Reset or NMI is generated when CPU does not periodically trigger the timer. Your can use I/O Port hex 043 and 443 to control the watchdog and generate a system reset.
* VGA Controller: Integrated S3 Savage4 AGP4X 3D graphics Core plus Advanced Memory Controller. Screen Resolution: up to 1920x1440x16.
* Ethernet: Dual Intel 82559 Fast Ethernet controllers, IEEE 802.3u Auto-Negotiation support for 10BASET/ 100BASE-TX standard. An RJ45 connector is located on the mounting bracket for easy connection.
* Ultra ATA/100 IDE RAID: Supports data striping (RAID0), mirroring (RAID1), and striping/mirroring combination (RAID0+1).
* Flash Disk Socket: The DiskOnChip compatible 32-pin dip socket is provided for Flash Disk (DiskOnChip ) application which will let users to use the Flash Disk with DOS command, without any extra software utility.
* Keyboard and PS/2 Mouse Connector: A 6-pin mini DIN connector is located on the mounting bracket for easy connection to a keyboard or PS/2 mouse. For alternative application, a keyboard and a PS/2 mouse pin header connector are also available on board.
* Power Consumption: +5V @ 5.32A ( Pentium III 850MHz,256MB VCM-SDRAM) +12V @ 165mA ,-12V @40mA
* Operating Temperature: 0 ~ 55 C ( CPU needs Cooler)
