858D++ smd soldering rework station hot air & iron 2IN1
858D++ SMD Soldering Rework Station HOT AIR & IRON 2in1
for soldering and desoldering SOJ, CHIP, QFP, PLCC, SOP

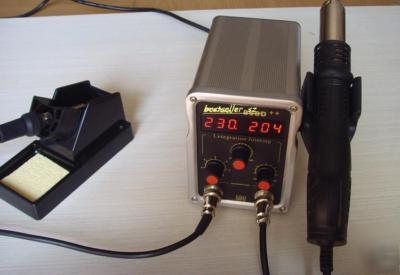

1, Tiny : as you can see from the picture , this machine can be hold in one hand, this greatly saves work space, makes you work with more freedom when soldering.
2, Automatic : another great feature of this machine is it can automatically stop hot air when you put down the handle, and when you lift the handle it automatically return to previous setting and begin to work. so you don't have to worry to which direction you are putting the hot air gun towards when you were not using it. when you put down the hot air gun to the holder, the machine will automatically blow cool air to cool the machine, then it will stop.
3, hot air gun and soldering iron 2 in 1 : two Digital displays for hot air temperature and soldering iron temperature. air speed adjustable with 8 shift. hot air temperature range 100c -450c, soldering iron temperature range 200-480c. soldering iron is ESD safe, has ceramic heating element, heat up very fast.
the soldering iron has no its own switch, so when the machine is on you have to leave the soldering iron on, you can set the degree at lowest which is 200c. i had consulted with engineers and users they said they didn't mind, since anyway you use the soldering iron frequently when soldering, it is no problem to have it remain hot. and if you don't use it you can just not plug it in.
please also note that the hot air gun , don't fit with normal nozzles, only has to be special kind , the package includes those nozzles. you can see them in the picture , those three nozzles they don't have screws aside, they are to be pluged in, the connection part is diffrent from traditional nozzles. all the turbine engine hot air gun are the same design. so please aware some of your nozzles at home might not fit with this machine.
Turbine engine soldering station ( this model ) don't burn the components easily, especially good for new users. the original Membranous pump soldering station needs more practice to be able to control it.
heating element : ceramic element
soldering iron and soldering iron stand
hot air gun and hot air gun handle holder
