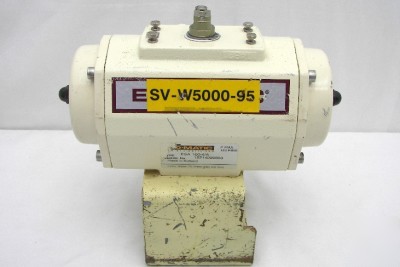

EL-O-MATIC Pneumatic Actuator ESA Type 100-4/A
Up for your consideration is a
* For application to ball, plug and butterfly valves.
* Can be used in other quarter-turn applications, such as dampers and pressure regulators.
* Actuators are made of high duty Aluminium alloys, providing optimum strength and corrosion resistance.
* Compact rack & pinion design.
* Can be supplied in single (spring return) or double acting versions.
* Choice from twelve sizes models, with a torque range from 12 to 4000 Nm (106 to 35400 lbf.in.).
* Mounting for solenoid valves and position signallers to the NAMUR standard (VDI/VDE 3845).
* Valve mounting and drive dimensions to the ISO 5211 or DIN 3337.
* Drive shaft provided with insert, for low cost, versatile direct valve mountings.
We realise that the performance of our pneumatic actuators is vitally important to your production process. An actuator that does not function well often has serious consequences for the outcome of the process. That is why quality has been our primary concept in actuator development. El-O-Matic pneumatic actuators are reliable, quality products, continuously providing optimum performance under all circumstances.
Pneumatic actuators come in two versions: double acting and single acting (spring return). Both versions are designed in such a way that (with the exception of the position indicator) there are no moving parts on the outside. This makes them safe, easy to install and virtually maintenance free. Furthermore, the compact rack and pinion construction means that actuators are lightweight and occupy a minimum of space.
* Pressure 0.2 to 8 bar (3 to 120 PSI)
* Temperature -20 C to +80 C (-4 F to +176 F)
* Shaft: Hard anodised aluminium alloy
* Finish Polyester non-TGIC based powder coating
* Lifespan Minimum of 500,000 cycles
