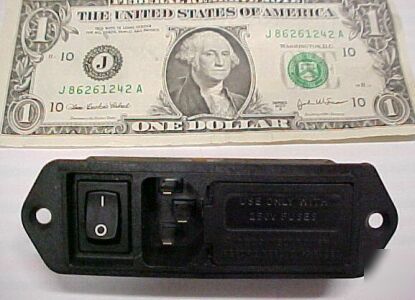

Corcom fused power entry modules, 6VM1S, 2-6609126-8
These were purchased at an electronics liquidation earlier this year, and we do not know much else about them. They are brand new in the original factory trays, and we bagged them in 4mil Ziplok bags for resale.
According to the module labels:
(Underwriters Recognized, CSA approvals)
DISCONNECT POWER BEFORE REPLACING FUSES (Ya think!?!)
Length (excluding flange): 3.158"
Width (excluding flange): 1.087"
Overall depth (excluding terminals & flange): 1.105"
Mounting holes: #8 or 4mm machine screws, spaced 3.625" OC (on centers)
I don't know anything about these, but here's Corcom's Datasheet (small PDF file)
The M series power entry modules offer the most choices of power entry components and filtering options to fit a specific need. The fully configured M series expands the options of a manufacturer whose products are marketed worldwide. One component, fully assembled and tested, provides the capability of interfacing a multi-voltage power supply to any common voltage or fusing scheme in the world, without modification.
- The IEC connector provides an internationally accepted power entry termination, which can be used with a variety of line cords. - The selectable fuseholder allows use of single or dual European fuses, or a single North American fuse. - The optional DPST on/off switch breaks both sides of the line and is labeled with the international I/O markings. - The optional voltage selector provides a convenient means to change transformer primary connection, and it is available in both 2-voltage and 4-voltage configurations. - The series is available with four filter circuits to meet a variety of applications, and convenient connections are provided on unfiltered models to allow wiring of a separate RFI filter.
The M series is a family of components offering greater flexibility and cost-effectiveness in the selection of primary power components. Wiring to the modules is accomplished via .110 terminals for labor savings and convenience.
