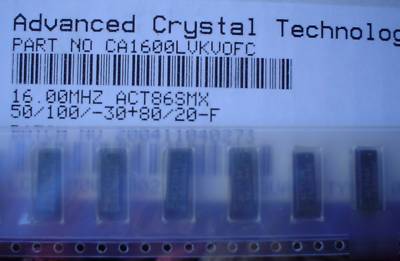

Act ACT86SMX 16.00 mhz crystals
Compact in size, the Surface Mount, plastic packaged
ACT86SMX is ideal for high density packing and automatic placement on circuit boards.
The device has, as its core, a heat resisting cylinder type crystal which makes full use of AT cut crystal characteristics.
This device can be used in a variety of applications such as Communications, Audio Visual, Measurement and Portable Equipments.
The footprint is an industry standard layout and is compatible with other popular plastic crystals in this package.
