Sunrise telecom sunset T10 SS150 tester

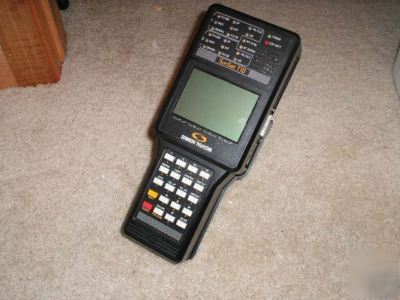

SunRise Telecom SunSet T10 SS150 Tester Kit
Options: A/B/C/D/E/F/I/K/L/M/N/O/P/Q/R/T/V
SS7 AND GR303 ON THIS PRIME UNIT!
Newer 15V version, not the old lead acid style!
Printed Manual, Nylon work bag, full sunrise telecom cable set and training video provided with this unit.

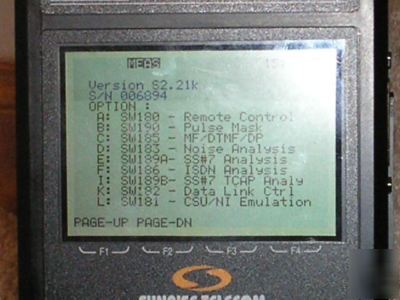

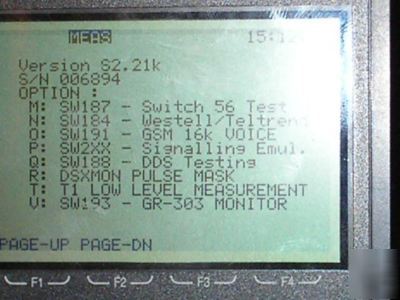

All the following software options below are enabled:
Allows menu-driven remote control of basic test functions using a dumb terminal or personal computer equipped with VT100 terminal emulation software. Includes printer cable and null modem adapter.
B: SW190 Pulse Mask - (a $675 option included!)
MF/DTMF/DP Dialing, Decoding, and Analysis. Provides dialing, decoding, and digit analysis for DTMF, MFR1, and pulse dialing. Bi-directional Signaling bits transition analysis.
VF Noise Measurement. Includes Signal to Noise, C-Message, C-Message Notched, and 3 kHz flat filters.
E: SW189A SS#7 Analysis - (a $1,170 option included!)
Provides elementary English-language decoding of SS7 call progress information up to layer 4, bit level decoding. Includes SU statistic analysis, MSU monitor/tracer. MSU supports TUP, ISUP, SCCP, SNM, SNT.
F: SW186 - ISDN PRI Call Setup & Monitor - (a $1,220 option included!)
ISDN PRI Call Setup & Monitor. Provides the ability to monitor D-Channel messages, place/receive calls, and talk/listen/BERT. ISDN Primary Rate Access T1 Line. Also includes sequential call feature. Supports 23B+D, 47B+D, and 46B+2D formats.
I: SW189B SS#7 TCAP Analysis - (a $675 option included!)
K: SW182 Data Link Ctrl (ESF and SLC-96 Data Link Send/Receive)
Upgrades software T10 to include T1.403 ESF data link send and receive capabilities, including T1.403 NPRM/SPRM analysis. Also includes SLC-96 data link send and receive..
L: SW 181 - CSU/NIU Emulation
CSU/NIU Emulation. Upgrades software T10 to include full duplex CSU/NIU Emulation.
Quick tests designed to check the operation of switched 56 services at a DS1 access point. Allows a technician to set up a call to a digital loopback, choose a test pattern, and verify successful bit error rate performance.
Provides menu-driven support for the Westell Maintenance Switch, and Performance Monitoring NIU, including the RAMP feature. Includes Teltrend Maintenance Switch operation. Loopback and span control for Westell and T
Provides ability to drop and monitor 16Kbps GSM channel at 13k voice rate to built-in speaker. Allows you to insert encoded voice message on a selectable timeslot and subchannel. Provides decoding for frame type of 16k subchan
Provides support for basic DDS applications involving interleaved loopbacks, latched loopbacks, and error measurements.
V: SW193 GR-303 Monitor - (a $1,545 option included!)
Provides ability to monitor TMC/CSC and eoc channels. Decodes TMC/CSC to Layer 3; eoc to Layer 2. Trace filters and performance statistics also included.
* Printed Sunrise Telecom Sunset T10 manual book
