Transpak T703-2000 transpak T703

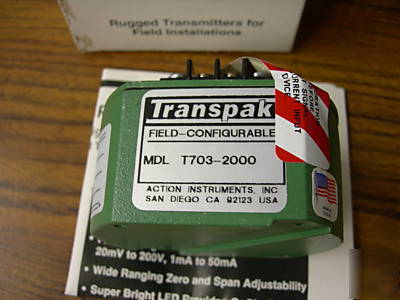

T703-2000:Transpaktwo-Wire Dc Volt/Curr Xmitter [ACTT7032000
These two-wire transmitters are compact, rugged units that
receive signals and direct sensor inputs, and operate from power
derived from the output signal loop. This series provides a
complete line of direct interface and conditioning modules for
use with temperature and other process parameters. These
transmitters also accept a wide range of other electrical DC and
AC voltage and current inputs.
Due to their low energy consumption and storage, two-wire
transmitters are the only types of transmitters considered for
intrinsically safe applications. Many of these transmitters are
Canadian Standards Association (CSA) and CENELEC approved
for intrinsically safe operation in hazardous - even explosive
- environments when installed in accordance with the
