Mastech HY3005D-3 variable triple-ouput dc power supply
Mastech Triple-Output DC Variable Power Supply, HY3005D-3
The Mastech HY3005D-3 is a triple outputs DC variable power supply. It has a total of three outputs, two of which are continuously adjustable from 0-30 volts and 0-5 amps, another one is fixed @ 5 volts and 3 amps. This highly stable, high quality DC power supply with its output continuously adjustable at 0-30V DC and 0-3A. What's more, the unit is equipped with coarse and fine controls for adjusting both voltage and current, making it extremely easy to set the outputs to your desired level. The unit comes with back-lit LCD displays, providing accurate readout for the voltage and current values.
Output Voltage : 0- 30V @ 5A
Input Voltage: 110V/60Hz. ( Or 220V/50Hz)
Constant voltage/ Constant Current
Voltage and Current adjustment
Waves and noises: CV<0.5mV r.m.s, CC<3mA, r.m.s
Protection: High current limited.
The third independent 5V/3A stable out put
Digital Voltage and current meters built in with Voltage resolution: 2.5% of display reading; 2.5% of Current resolution: display reading
Size: (mm) 365 X 265 X 164, (inches) 14 2/5X10 2/5x6 1/2"

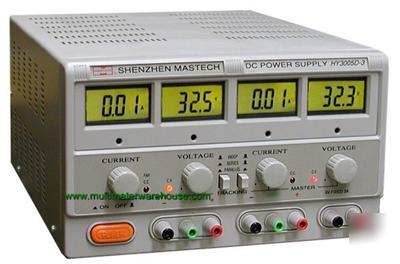

Mastech HY3005D-3 power supply
