> Ic chips: 5PCS LM4860M audio power amp w. shutdown mode

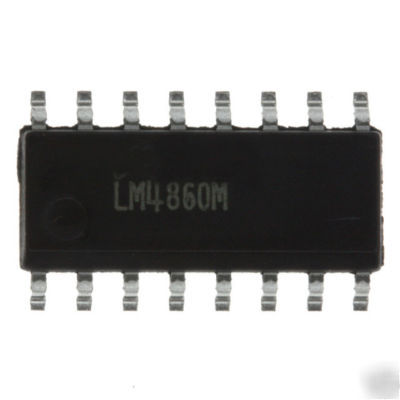

Ic chips: 5PCS LM4860M audio power amp w. shutdown mode
- No output coupling capacitors, bootstrap capacitors, or
snubber circuits are necessary
- Small Outline (SO) packaging
- Compatible with PC power supplies
- External gain configuration capability
- Two headphone control inputs and headphone sensing
- THD+N at 1W continuous average
output power into 8O: 1% (max)
- Instantaneous peak output power: >2W
- Shutdown current: 0.6 A (typ)
