Anritsu MH680B 2 ghz tracking generator sig src 85640A

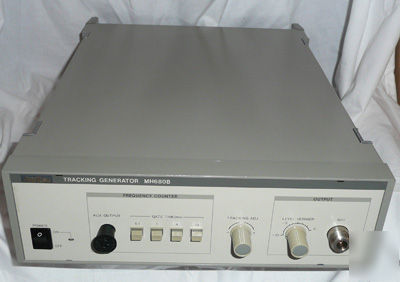

ANRITSU MH680B 2 GHz Tracking Generator Signal Source
The MH680B tracking generator is a sweep signal source which when used with the MS2601A permits direct observation and measurement of frequency characteristics over 100kHz to 2.2 GHz. A high performance ALC circuit is provided the output level deviation is small and transmission characteristics can be measured with high accuracy. The MH680B has a frequency range of 10Khz - 2.2 GHz and an output level of 0dBm with a 10 dB analogue attenuator for adjustment. To allow for minor tracking errors the TG also has a tracking adjust control which allows for minor frequency offsets.
This unit is in excellent condition with a couple very minor scratches on the top and outer edges.
Ascent Concepts and Technologies is a Research & Development Lab. As a service to the companies and institutions we work with, we broker their excess equipment & act as application specialists on their new equipment needs. We are now offering quality used equipment to the public with the same level of professionalism and service.
