> Lecroy dda-120 4 channl 8GS/s 1GHZ oscilliscope LC584AL

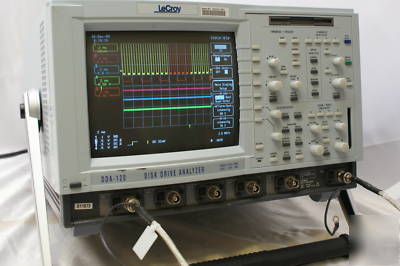

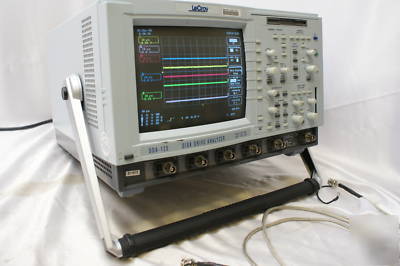

Lecroy dda-120 4 channl 8GS/s 1GHZ oscilliscope LC584AL

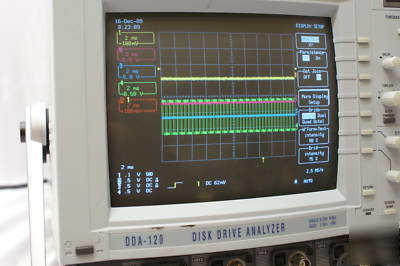

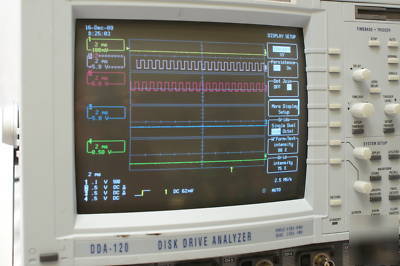

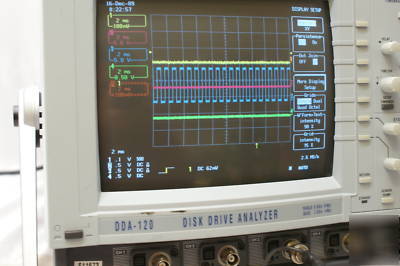

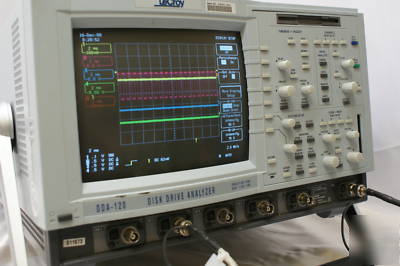

All channels read signal from Cal output good and function correctly.
***Notes disk drive inoperative on the top. I attempted to screen dump onto the floppy disk, it appeared to try and read the disk and gave the error: Bad format. The disk I had had been used and I don t have any blanks on hand to verify it. Other than this, the unit operated fine. Disk may or may not work. Please assume it does not.

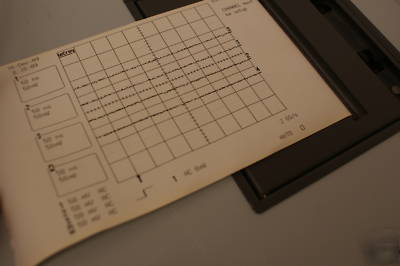

This unit will run out of printer paper within a couple more prints.
- WP01: advanced waveform math package
- WP02: spectrum analysis package
- WP03: parameter analysis package
- DDM: disk drive measurements
- PRML: supplementary disk drive measurements
- DDFA: disk drive failure analysis
- JTA: Jitter and Timing Analysis
- CLBZ: Piezo Buzzer Alarm Installed
- GP01: Internal graphics printer

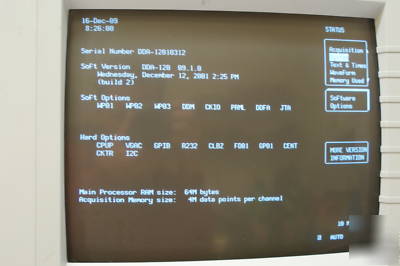

Main processor Ram size: 64M bytes
Acquisition Memory Size: 4M data points per channel
Auto,Edge,Normal,Pulse,Single,Slope,Stop,TV
User manual for a Lecroy LC series Digital Oscilloscope. http:// /objects/catalog/product/extras/1575_LECROY_LCSERIES.pdf
