> FDFS2P103A p-ch mosfet ic ( 10 pcs )

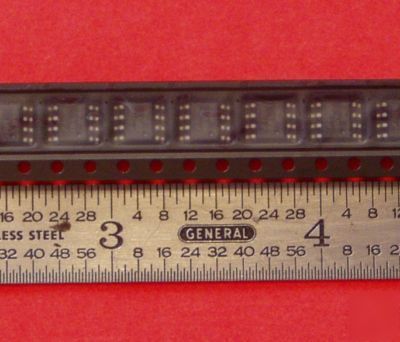

FDFS2P103A p-ch mosfet ic ( 10 pcs )
Integrated P-Channel PowerTrench MOSFET and Schottky Diode
The FDFS2P103A combines the exceptional
performance of Fairchild's PowerTrench MOSFET technology with a very low forward voltage drop Schottky barrier rectifier in an SO-8 package. This device is designed specifically as a single package solution for DC to DC converters. It features a fast switching, low gate charge MOSFET with very low onstate resistance. The independently connected Schottky diode allows its use in a variety of DC/DC converter topologies.
5.3 A, 30V RDS(ON) = 59 m @ VGS = 10 V RDS(ON) = 92 m @ VGS = 4.5 V
VF < 0.35 V @ 1 A (TJ = 125 C) VF < 0.25 V @ 1 A (TJ = 25 C)
Schottky and MOSFET incorporated into single power surface mount SO-8 package
Electrically independent Schottky and MOSFET pinout for design flexibility
