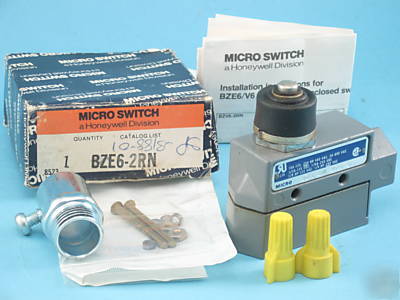

Honeywell 15 a micro limit snap action switch BZE6-2RN
15 AMP 125, 250 OR 480 VAC, 2 AMP - 600 VAC
1/8 HP - 125 VAC, 1/4 HP - 250 VAC
This is a new enclosed sealed micro switch with screw terminals which can be wired for normaly open or normally closed. This means that it can be wired to turn equipment off or on when the switch is pressed or limit reached and actuated.
MICRO SWITCH E6 (side mount) switches are offered with actuator seal boots. It has a combination insulator/seal cemented inside the bottom enclosure. Lead washers are used to seal the mounting holes on side mount switches. All side mount switches are installed with #6 screws, except . Removal of the bottom enclosure exposes the terminals for easy wiring.
Condition New In Box with instructions
Momentary or maintained contact
Temperature range -32 C to +71 C [ -25 F to +160 F]
Zinc Die-Cast housing NEMA 1
CSA Certified, file #LR41372
* Overtravel Plunger Actuator
Construction machinery and equipment
Ove Overhead cranes and hoists
