1/2" dual cross relief valve with anti-cavitation 70L/m
1/2" Dual Cross Relief Valve With Anti-Cavitation 70L/M

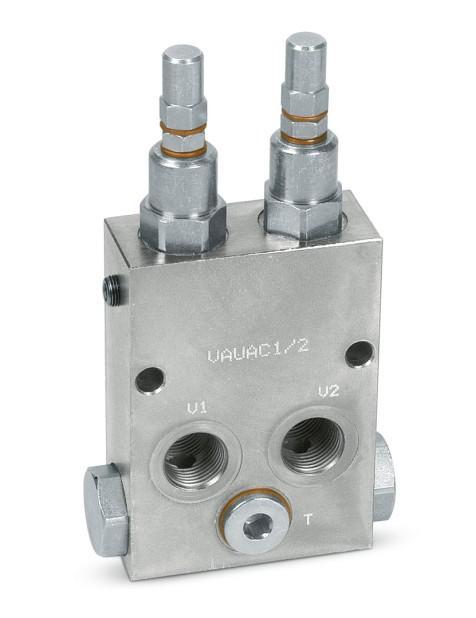

1/2" HYDRAULIC DUAL CROSS RELIEF VALVE WITH ANTI-CAVITATION - V0508
This valve is used to block pressure to a certain setting in the 2 ports of an hydraulic motor: when it reaches pressure setting, the valve opens allowing pressure relief in T. The relief valve provides overload protection in a fast and accurate way and cavitation is avoid tanks to the check valve. It's suggested to mount set check valves to the tank way out
Applications : Connect M1 and M2 to the motor P1 and P2 to the pressure flow. connect T to the tank. Mounting by the actuator is highly recommended in order to avoid pressure drops and get a prompt duty.
* Boby: Zinc plated steel (1/2") and alluminium (3/4")
