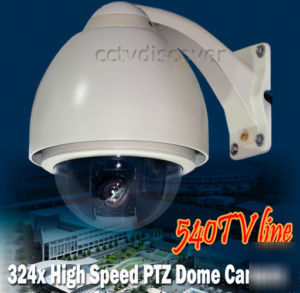

Cctv ptz dome camera 1/4"ex-view ccd 324X zoom 540TVL
Auto flip with vertical 180 in omni-directions, no fade zone
High Resolution 540 TV line at color, 570TV line at B/W
27x Optical 12x digital Zoom lens
IR Cut Filter( day/Night auto switch),
Hard & Soft address design, can remote to configure camera ID
High die-cast aluminum double case construction
200 presets, 4 preset patrolling scanning routes, each contains 32 presets, and the presets can be separately programmed
Built-in surge protection device, lightning proof
4 Pattern scan routes, each can record no less than 180s
Auto thermostatic control system, Built-in Heater and Fan
Double power supply DC12V~AC24V support
8 display zones with addressable title
Auto protection Function will be on when power cutting
4 ch alarm input; 2 ch assisting output
Built in OSD menu, display or set parameter via menu
Preset precision less than 0.3
Built-in dome s temperature display
Horizontally and Vertically speed 0.5 -240 /s
With 3D noise reduction(3DNR) embedded, it produces extremely clear picture quality even under low light condition for 24/7 surveillance
The automatic white balance provides an extensive range color temperature control
It cuts off the strong lighting like the "headlight", According to user's adjustment, zones & sensitivity can be adjustable. In case of the car surveillance, it remarkabley performs recognizing license plate or subject
Seamless AE intelligent control
The Sens-up function allows the camera can disply the bright image even extreme darkness
XDI's unique DSS, 3D-DNR AGC control Mechanism will detect intruders even in lowest-illuminations, by maximizing the brightness of the image and movement of the object while reducing Noise
xdi's unique technology, advanced fast histogram equalizer/Adaptive LUT/Locaol contrast enhancement, allows dark portions of a bright image to be shown clear, enhancing details in the WDR image and removing noice
When the unit is observing a wide area, the captured image can be masked for privacy purpose. User can easily configure the size and position of required privacy zones, up to 8 zones are available
0-90 Rotation, 180 auto rotation
2400bps/4800bps/9600bps/19200bps selectable
Outdoor -40 C ~60 C indoor 0 C ~ 50 C
PAL: 795(H) X 596(V) NTSC: 811(H) X 508(V)
x27 Zoom ( F1.5(Wide End) , F3.6(Tele End)
Color Mode :0.003 (0.6) Lux (Sens-up ON) B/W Mode : 0.0001 (0.1) Lux (Sens-up ON)
PAL: 1/50 ~1/100,000, NTSC: 1/60 ~1/100,000
Auto / ATW/ ONE PUSH / Manual(1800 k ~ 10,500 k)
OFF /Auto ( x2, x3, x4, ..x 128)
