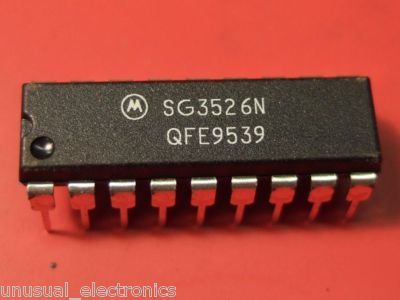

New SG3526N pwm ic. old stock SG3526
The SG3526 is a high performance monolithic pulse width modulator circuit designed for fixed-frequency switching regulators and other power control applications.
1Hz to 350KHz oscillator range
Dual 100mA source/sink outputs
Wide current limit common mode range
TTL/CMOS compatible logic ports
Symmetry correction capability
Guaranteed 6 unit synchronization
Temperature range: 0 C to +125 C
http:// /datasheets/sg1526.pdf
