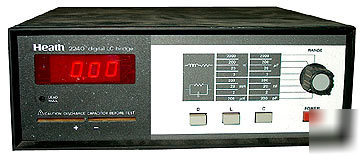

Heath IT-2240 Digital LC Bridge
To verify that a 10pF Capacitor or 10 mH inductor is precisely what it is supposd to be, you need a Digital LC Bridge. This Versatile instrument verifies capacitors and indoctors, plus checks the associated dissipation or loss factor.
A four-point Kelvin input connection eliminates the variable effects of components with large lead lengths or large lead diameters. A null controll control also eliminates stray capacitance on the lower ranges. Seperate rear panel connectors allow the application of a DC voltage for batch testing or hookup of a plotter for charting capacitance and voltage curves.
Inductance range: 200 uH to 2000 H in 8 decade steps.
Capacitance range: 200 pF to 2000 uF, 8 decade.
Dissipation range: 000 to 1999
