Array tc-PRO480SRD 1/8 din timer module h/m/s 24 vdc
Array TC-PRO480SRA 1/8 DIN Timer Module H/M/S 24 VDC

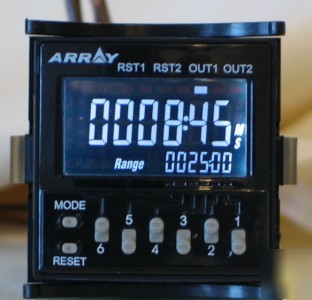

New in Box Panel Mount Timer from Array. This is the standard version with relay outputs with 24 VDC Power.
Digital Timer/Counter /Tachometer
Timer, Dual Timer, 2-Stage Timer
1-stage counter, 2-stage counter, total counter, batch counter, dual counter, and tachometer (selectable)
Timer, Dual Timer, 2-Stage Timer,1-stage counter, 2-stage counter, total counter, batch counter, dual counter, and tachometer (selectable)
100~240VAC(50/60HZ), 24VAC(50/60HZ), 12~24VDC( permissible ripple :20%(p-p) max. )
85%~110%Rated Supply Voltage (12~24VDC: 90%~110%)
Approx. 6.2VA at 264VAC, Approx. 5.1VA at 26.4VAC, Approx. 2.4W at 12VDC
30Hz or 5KHz (10KHz for Tachometer)
Elapsed time (UP), Remaining time (down) (selectable)
No-voltage input : ON impedance : 1k max. ( leakage current :5~20 mA when 0 ) ON residual voltage :3V max. OFF impedance :100k min.
Voltage Input : High(logic) level : 4.5~30 VDC Low(logic) level :0~2 VDC( Input resistance: approx. 4.7 k )
SPDT contact output: 5A at 250 VAC, resistive load(cos?=1)
Minimum applied load: 10 mA at 5 VDC
Transistor output: NPN open collector, max. 100mA at 30 VDC
Residual voltage : 1.5 VDC max.(approx. 1V)
Output category according to EN60947-5-1 for timers with Contact outputs
(AC-15; 250V 3A / AC-13; 250V 5A / DC-13; 30V 0.5A)
Output category according to EN60947-5-2 for timers with Transistor outputs (DC-13; 30V 100 mA)
NEMA B300 Pilot Duty, 1/4 HP 5-A resistive load at 120 VAC, 1/3 HP 5-A resistive load at 240 VAC
Mechanical : 10,000,000 operations min.
Electrical : 100,000 operations min.(5 A at 250 VAC,resistance load)
