9" hole 35" swg acer dynamic-3580G engine lathe, A2-15
9" Hole 35" Swg Acer DYNAMIC-3580G ENGINE LATHE, A2-15

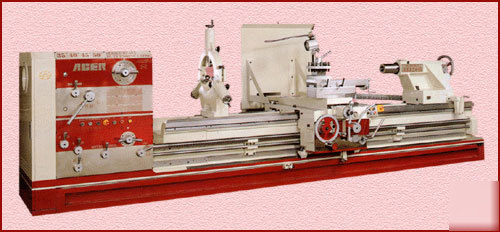

9" Hole 35" Swing Acer DYNAMIC-3580G ENGINE LATHE, A2-15 Nose, Taper Attach.
"NEW" ACER Heavy Duty Oil Country Lathe
MODEL: Dynamic Series - 3580G w/9" Spindle Bore
Length of Gap From Headstock: 23-3/4"
Swing Over Gap (gap type only): 52-3/4"
Compound Rest Travel: *15-3/4"
Max Size Cutting Tool: 1-3/5" x 2-3/4"
Bearing Surface On Ways: 19-3/4"
Pitch of Leadscrew: 50 Diameter, 2 TPI
Metric Pitch Threads: 2-56mm (60)
Inch Pitch Threads: 2/1 (2 inches per thread) 28 TPI (60)
Module Pitch Threads (optional): 25 - 14 (60)
Diametral Pitch Threads (optional): 2-112 DP (60)
Range of Longitudinal Feeds: 0.0017 - 0.095 IPR 0.042 -2.4mm
Range of Cross Feeds: 0.009 - 0.0481" IPR 0.02 - 1.2mm
Main Drive Motor: 30 hp (Optional: 40 hp)
Rapid Traverse Motor: 1 hp at 80" - 40"/min
Oil gauge for indicating lube pump.
18 spindle speed selecting levers.
Compact lay-out electric cabinet.
Forward/Reverse selection lever.
Auto/manual tool post selection knob.
Automatic movable screw support.
Telescopic taper turning attachment.
Internal triangular rib for heavy cutting support.
One piece bed and base casting.
Tailstock's position lock lever.
Hand crank for tailstock's manual movement.
26" bed width with three bed way support.
Massive 20,000 lbs machine base.
Emergency switch for total electric shut off.
Three ways lubrication selection knob.
Internal clutch for apron overload protection.
Auto feed stopper for precise positioning.
Third supporting way reduces cantilever action.
Aloris or Dorian Tool Posts and Holders
40 HP instead of the standard 30
Auto Cycle Incremental Cutting Device
Bigger Spindle Bores up to 21"
