Nyle kiln, chains, lift king fork truck, hmc trimmer

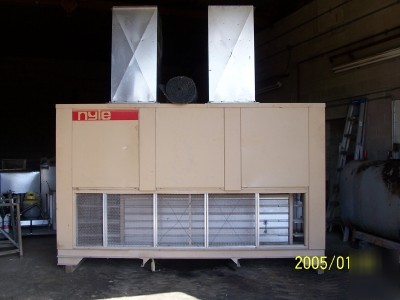

NYLE HT 54 Compressor/Control unit with fans, vents, and doors. Five 36" circulation fans with 5 hp motors [Emerson and Reliance]. 460 volt, 3 phase. Insulated doors, 2 at 14'6" H x 24'6" W with rear man door and hanger. This package is in amost new condition [See photo with spec. tag]
NYLE LT2500 Compressor/Control unit with fans, vents, and doors. Five 36" circulation fans with 5 hp motors. 460, 3 phase. Carlyle compressor is replacement unit about ten years old. Insulated door 14' H x 29' W with rear man door and hanger.
NYLE LT2500 Control unit without compressor. Has fans. Unit has been used for parts but can be put back into production.
Note: The two LT 2500's have custom made heat exchangers [36" x 24"] for a boiler system for heat supply option. Wiring runs for fans and power vents with some conduit and boxes included.
Hardy Tilt Hoist. Three arms. Dimensions 5' deep x 7' tall x 12' long. Includes sticker removal system with electric motor and drive.
Grading chain. 26' long, 5 stand, roof top chain [Link Belt H-130]. 14" high feed and return system mounted on 3] 28" high x 14' 8" long I beam leg system. Electric motor with Winsmith speed reducer [Model 803].
HMC 20' Double End Trimmer. Right hand Trim Saw, 26" blades. Good working condition with power panel to run all components [tilt hoist, grade chain, saw, and sort chain] Positioning pre-sets for 4'-16' with odd lengths. 18' through 20' do not have relays.
Sort chain. 40' 4 strand C-188 flat chain. Legs are 40" high. This is a custom made set up. Electric motor with Winsmith speed reducer [Model 10CT].
Lumber carts. All carts are 8' long, 4' wide, and 4' tall box beam heavy duty construction. Approx. 25 carts. Have many extra iron wheels.
Breeze dried stickers. Includes 6 stick jigs and approximately 25,000 4' sticks.
1998 Lift King 4 WD fork truck. [Model # LK 10M42, Ser. # LT 0435.] 10,000 lb. lift, 14 foot high reach, 4' forks. Truck weighs 16,300 lbs. Heated enclosed cab. Four speed tranny with reverser. New Perkins diesel replacement motor approx. 8 years ago [List # AG 31285, Ser.# 1548/2200 U858687C*] Front tires need replacing [16.9 x 24] Rear tires are 40% and 90% respectively.
This equipment was all in working condition at time of removal approximately 12 months ago. Has been stored inside since removal However, there is no warranty on any item in this sale. Call with any questions (***)-674-9663 or e-mail us at ****@frontiernet.net
Dates on the pictures are from when the camara was purchased not when the pictures were taken. Pictures were taken six weeks ago. Thanks
