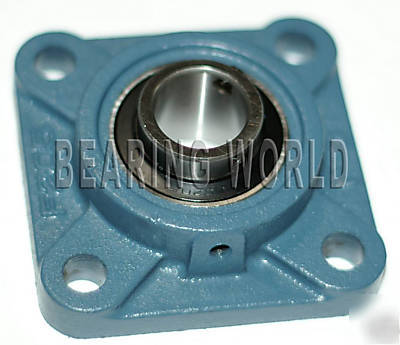

New 1-11/16" 4-bolt flange bearings UCF209-27 (2 pieces
This is high quality self aligning set-screw bearing with cast iron 4-bolt flange.
UCF209-27 = 1-11/16" Set-Screw Insert Bearing & 4-Bolt Flange Housing
See below for dimensions of this 4-Bolt Flange Unit.
"e" (center of bolt hole to center of bolt hole) = 4-9/64" "a" (overall lenght) = 5-13/32" "s" (bolt hole) = 5/8"
"g" = 45/64" "l" = 1-1/2" "Z" = 2-1/16" "Bi" = 1.9370" "d" (shaft / bore) = 1-11/16"
