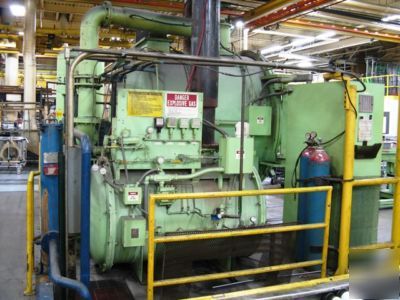

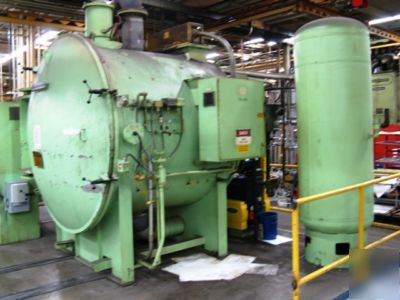

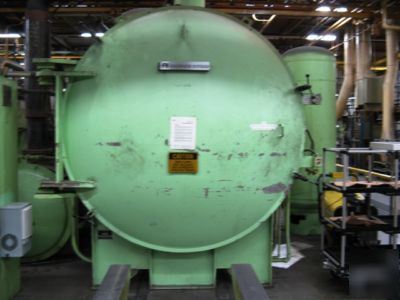

Abar ipsen vacuum tempering furnace
36"W x 30"H x 48"L - 32"H which includes work tray.
Installed Dimensions: 9'6"W x 14'H x 12'3"L, Control Panel: 24"W x 88"H x 44"L
- Honeywell Digital Strip Chart Recording Controller.
- Barber Colman Cimac 2 Digital Programmable Controller.
- Televac MC 300 Vacuum Controller
- Honeywell UDC 3300 Digital High Limit

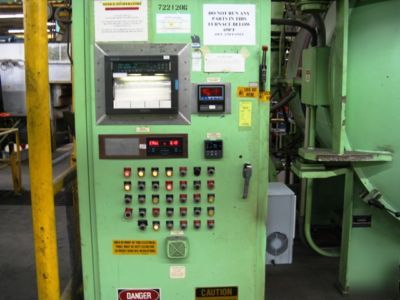

All above controls/instruments are mounted in a free standing enclosure.
- Halmar SCR controls power to heating elements. SCR is mounted in an enclosure attached to the right hand side of furnace.
Hearth Capacity: 3000 Pounds Gross

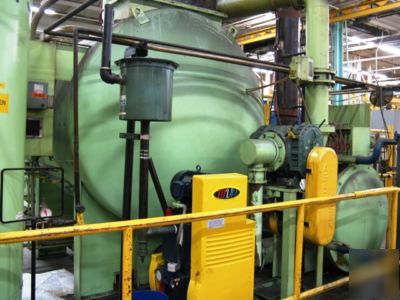

Pumping System: Stokes 212J-14 Mechanical Pump and a Stokes 615-1 Blower.
Insulation: Kaowool w/Stainless Steel Shielding
An alloy plenum distributes heated air through deflectors and baffles for good uniform heating. Previous user was getting +/- 5 F uniformity. A 7.5 H.P. centrifugal circulating fan is mounted in the roof. Forced cooling via Nitrogen (Tank Included), Argon or Helium is achieved by an external 5500 CFM, 40 H.P. blower. Water consumption is 10 G.P.M. average and 120 G.P.M. during fast cool.
