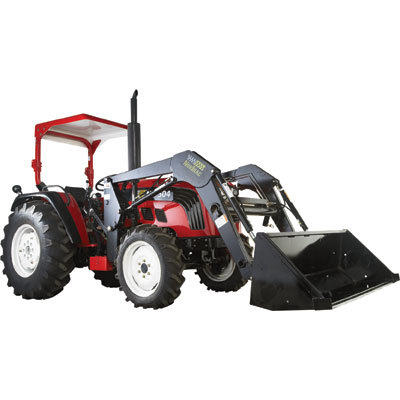

Nortrac tractor with front-end loader — 50 hp
NorTrac Tractor with Front-End Loader 50 HP
This 50 HP (Item# 188530) tractors strength comes from an EPA-IV standard 4-cylinder engine with 8+8 shuttle shift gearbox to meet different working requirements and a 2-stage clutch with big torque reserve ratio. Hydraulic steering system for convenient operation. New streamlined and luxurious appearance. Includes a front-end loader for added versatility.
* Overall Dimensions L x W x H (in. (mm)): 146 x 79 x 98
* Wheel Tread Width - Front (in. (mm)): 49.3
* Wheel Tread Width - Rear (in. (mm)): 47.3 - 59.1
* PTO Speed (RPM): 540 / 1000
* Lift Capacity (lbs.): 2,045
* Equipped with LIVE PTO and 3-point category II hitch Hydraulic steering system for convenient operation
* OECD safety ROPS (Roll Over Protection Structure) Certified, comfortable chair, safety belt, and protective starting system to ensure safe operation
* Overall Dimensions: 146in.L x 79in.W x 98in.H
* Wheel Tread Width Front (inches): 49.3
* Wheel Tread Width Rear (inches): 47.3-59.1
* Minimum Ground Clearance (inches): 11
* Agricultural Ground Clearance (inches): 12.8
* Turning Radius: One side braking (ft): 12.5 0.9 PTO Speed: 540/1000 RPM 4 wheel drive PTO Power: 48 HP 3-Pt.
* Hitch Type: Category II Lift Capacity: 2045 lbs.
* Max. lift height: 9ft., 6in.
* Clearance with bucket dumped: 7ft., 5in.
* Reach @ max. height: 24in.
* Max. dump angle: 45 Bucket
* Overall height in carry position: 5ft., 2in.
* Breakaway (@ 2200 PSI): 3463 lbs.
* Fast attaching loader includes two 2 1/4in. lift cylinders, cylinder hoses, standard bucket less teeth and less mounting adapter kit
