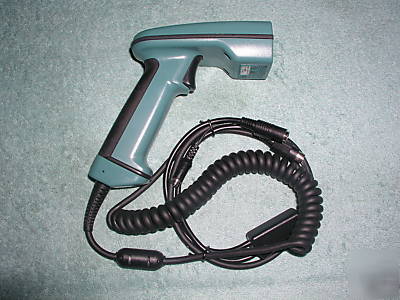

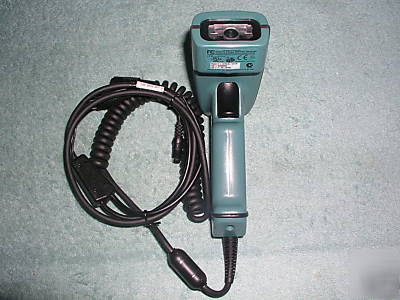

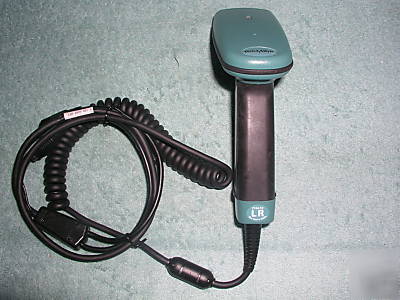

New hand held products 4410LR hand held image reader
The HHP IMAGETEAM (IT) 4410 Image Reader can be configured as either a hand held or fixed mount device that reads matrix, stacked linear, and conventional linear bar codes, as well as a single line of OCR-A and OCR-B fonts. Multi-line OCR applications can also be read. The IT4410 has the power to capture and download images to a PC for applications, such as signature capture, PC-based decoding, and image lift requirements. The IT4410 Reader can be used in retail, packaging, transportation, printed circuit board manufacturing, electronic component manufacturing, and clinical/diagnostic applications that include test tube and reagent package labels. The IT4410 can be configured for keyboard wedge, Non Decoded Output (Code 128 emulation), TTL RS-232, or True RS-232. The IT4410 connects to all popular PCs and portable data terminals. The Non Decoded Output mode can be used with external wedge decoders and portable terminals or other devices without 2D decoding capability. The IT4410 features integrated processing for a onepiece scanning solution - no additional boxes or electronics needed. The reader provides omnidirectional and auto-discrimination decoding for symbologies, such as MaxiCode, PDF417, QR, Data Matrix, Aztec code, RSS code, composite codes, postal codes, Code 39, Code 93, Interleaved 2 of 5, Codabar, Code 128, UPC, and EAN. Additional symbologies will be added based on market demand. Because the IT4410 is a fixed focus device, four product models with different focal points are available. The IT4410LX, designed for reading wide codes at up to 15 inches on PDF, has a focal point of 7 inches from the nose. It is ideal for reading the 1D and 2D labels found in the transportation industry. The IT4410LR, designed for low and medium density codes, has a focal point of 5 inches from the nose. It is ideal for general 2D applications (postal, retail, and asset tracking).
* 2D Image Reader - Hand held or fixed mount image reader for reading and decoding 2D symbologies and capturing images.
* Supports All Popular 2D Symbologies - Fixed mount IT4410 supports all popular matrix and stacked linear symbologies: MaxiCode, Aztec, Aztec Mesa, Data Matrix, PDF417, QR, and MicroPDF417.
* Fixed Position Reader - Opens up new 2D bar code and image capture possibilities for fixed scanning applications.
* Omni-Directional Scanning - CMOS-based video technology and image processing gives the IT4410 full omni-directional scanning, even on linear codes, greatly simplifying operator training and increasing productivity.
* Autodiscriminates Between Supported Symbologies and Fonts - Reads all major linear, stacked linear, and matrix bar codes as well as machine readable fonts used in Optical Character Recognition (OCR).
* LR Focal Point: 5 inches from nose
* 12 pt OCR-A (12 cpi) Near = 1.9 in. (4.8 cm), Far = 8.7 in. (22.1 cm)
* 5 mil Linear (0.013 cm) Near = 3 in. (7.6 cm), Far = 4.3 in. (10.9 cm)
* 13 mil UPC (0.033 cm) Near = 1.9 in. (4.8 cm), Far = 9.4 in. (23.9 cm)
* 15 mil Data Matrix (0.038 cm) Near = 2.0 in. (5.1 cm), Far = 5.8 in. (14.7 cm)
* 6.6 mil PDF (0.017 cm) Near = 2.7 in. (6.9 cm), Far = 5.2 in. (13.2 cm)
* 10 mil PDF (0.025 cm) Near = 2.4 in. (6.1 cm), Far = 7.7 in. (19.6 cm)
* Viewing Angle: +- 45 Degrees
* 2 Dimensional: MaxiCode, PDF417, MicroPDF417, Aztec, Aztec Mesa, Data Matrix, QR Code, Code 49, UCC Composite, Snowflake*, Vericode*, Dataglyphs* (*Available to licensed users only)
* Current Draw: Lower Power Mode - average @ 5 VDC-40mA, Medium Power Mode - average @ 5VDC-125mA, High Power Mode - average @ 5VDC-175mA
