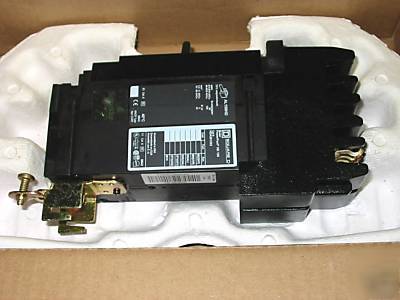

HDA261252 (2=ac) square d 2P 125A 600V i-line breaker
HDA26125 2 (A & C phase), SQUARE D 2 POLE 125 AMP 600VAC I-LINE BREAKER
240/480/600 VAC AT 50/60 HZ, 480 VAC STAR/277 VAC AT 50/60 HZ,
600 VAC STAR/347 VAC AT 50/60 HZ (UL/CSA/NOM); 220/240/380/415/500/525 VAC (IEC 947-2);
125 AMPERE; 2 POLE; INTERRUPTING RATING 25 KILOAMPERE AT 240 VAC,
18 KILOAMPERE AT 480 VAC OR 480 VAC STAR/277 VAC,
14 AMPERE AT 600 VAC OR 600 VAC STAR/347 VAC (UL/CSA/NOM);
14 KILOAMPERE AT 500/525 VAC (IEC 947-2);
TRIP SETTING 900 TO 1700 AMPERE; APPLICATION DISTRIBUTION;
USED ON CLASS 612 I-LINE[R] PANELBOARD; APPROVAL CE;
HD MODEL; FRAME TYPE H; TRIPPING METHOD THERMAL MAGNETIC;
PHASE CONNECTION (A & C) EXAMPLE: hda26125ac
