> Anritsu MP1763B-01 digital transmission tester 12GB/s

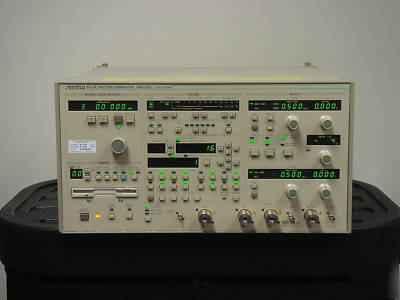

Anritsu MP1763B-01 digital transmission tester 12GB/s
Options included: 01 - Internal Clock 0.05 to 12.5GHz
The MP1763B is used in combination with the MP1764A Error Detector. The amplitude of the clock and data signals can be varied from 0.25 to 2 Vp-p while the offset can be adjusted to within 2 V so that the amplitude and the offset margin can be measured. The clock has a variable delay function so that time-dependent characteristics or phase margins of the input clock and data can be measured. An M series pseudorandom pattern representative of actual conditions or a programmable pattern can be selected as cell data. In addition, a 3.5 inch floppy disk drive is built in for storing preset data, enabling rapid measurements to be performed by simply pressing a key. A GPIB function is provided, enabling automatic or remote measurement via an external controller. The MP1763B is a pulse pattern generator ideal for research and development of high-speed logic, ICs, and digital systems. High quality waveform Low FM/PM-noise clock generator 8 Mbit programmable pattern corresponding to six frames of STM- 64/STS-192 Generates PRBS patterns with bit length from 27 1 to 231 1 bits Complementary outputs of both data and clock The amplitudes and offsets of all 8 data outputs that have 1/8 speed of fundamental clock signal can be set.
