8 pcs, analog multiplexers / demultiplexers -- cmos

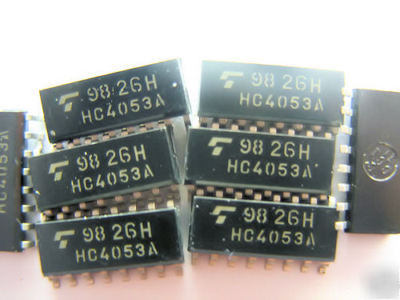

8 pcs of Analog Multiplexers / Demultiplexers
The 74HC4053A utilize silicon-gate CMOS technology to achieve fast propagation delays,
low ON resistances, and low OFF leakage currents. These analog
multiplexers/demultiplexers control analog voltages that may vary
across the complete power supply range (from VCC to VEE).
HC4053A are identical in pinout to the metal-gate MC14053AB. The
Channel-Select inputs determine which one of the Analog
Inputs/Outputs is to be connected, by means of an analog switch, to the
Common Output/Input. When the Enable pin is HIGH, all analog
The Channel-Select and Enable inputs are compatible with standard
CMOS outputs; with pullup resistors they are compatible with LSTTL
These devices have been designed so that the ON resistance (Ron) is
more linear over input voltage than Ron of metal-gate CMOS analog
Fast Switching and Propagation Speeds
Low Crosstalk Between Switches
Diode Protection on All Inputs/Outputs
Analog Power Supply Range (VCC - VEE) = 2.0 to 12.0 V
Digital (Control) Power Supply Range (VCC - GND) = 2.0 to 6.0 V
Improved Linearity and Lower ON Resistance Than Metal-Gate Counterparts
In Compliance with the Requirements of JEDEC Standard No. 7A
Chip Complexity: HC4053A 156 FETs or 39 Equivalent Gates
