1997 nasa-moore cnc jig grinder w/fagor control

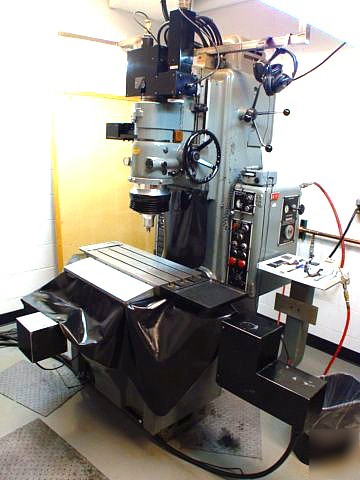

1997 NASA-MOORE CNC JIG GRINDER w/FAGOR CONTROL
MOORE #3/RETROFIT BY NASA MACHINE TOOLS, INC.,
CNC CONTINOUS PATH CONTOURING JIG GRINDER
Four axis CNC control system w/8" Amber CRT
Control & electronics mounted in a stand alone cabinet
Three Axis CNC controlled X,Y and C
(U Axis outfeed Optional, Equipped on this Machine)
Closed loop DC servo drive system with rotary encoder
X & Y axis contouring rate 15 IPM
X & Y axis traverse rate 20 IPM
X & Y Limit switches w/indicator lights
X, Y & C home switches w/indicator lights
CNC Controlled PLANETARY hole grinding modes
Programmable chop grind ON/OFF w/Head up microswitch
Ultra Precision ballscrews X & Y axes
Automatic "C" axis normalcy, M97,m98
Precision roller bearing way system
Automatic lubrication system to ways and ballscrews
CNC Control resolution .000010"
Manual pulse generator (handwheel)
Programmable U-axis outfeed w/home and limit switches
FAGOR 8030 CNC CONTROL SPECIFICATIONS:
Four (4) axis microprocessor (X/Y/U/C Axes)
Absolute / incremental programming
Cartesian and polar coordinate programming
Multiple programmable zero offsets
