> Kramer electronics vs-84YC 8X4 yc audio passive switchr

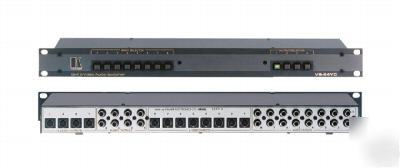

Kramer electronics vs-84YC 8X4 yc audio passive switchr
Manufacturer: Kramer Electronics Model/Part #: VS-84YC
The Kramer VS-84YC is a high quality, rack mountable, mechanical 8x4 switcher for s-Video (YC) and stereo audio signals. It is designed to route any one of up to eight sources to any one of four outputs using 4-pin connectors for s-Video, and RCA connectors for audio. Audio is always switched together with the corresponding video signal. Note that the VS-84YC can only provide one s-Video and audio signal path at any given time. It cannot distribute an s-Video and audio signal to multiple outputs simultaneously.
High quality switching components and carefully designed PCB s provide excellent isolation between inputs, and the passive design of the VS-84YC makes it suitable for other signal formats. Also, its unpowered design can be an advantage in applications where various regulatory compliance would otherwise be required. Unselected inputs are terminated via 75? resistors.
