> Gigatronics 8542C power meter 2 channel -calibrated-

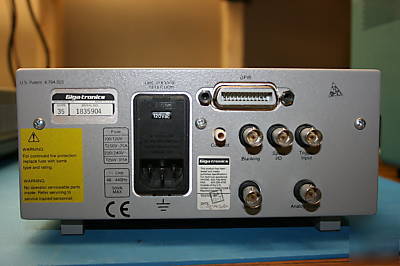

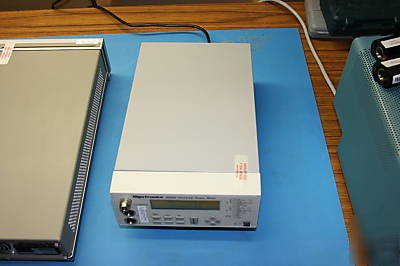

Gigatronics 8542C power meter 2 channel -calibrated-

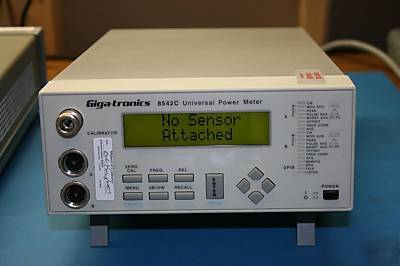

Gigatronics 8542C Universal Power Meter
Description The Gigatronics 8542C Universal Power Meter combines accuracy, speed, range and measurement capabilities unavailable from any other power meter. The Gigatronics 8542C Universal Power Meter has built-in features such as dual sensor input, power sweep calibration and frequency calibration providing an unequalled degree of measurement accuracy up to 40 GHz.
* Frequency Range 100 kHz to 40 GHz, depending on sensor used
* Power Range: -70 to +47 dBm, depending on sensor used
* Choose from an extensive line of CW, Peak, Modulation and True RMS sensors
* Sensors Supported: 80300A, 80350A, 80400A, 80600A Series
* Automatically measure average power of TDMA, GSM, and CDMA signals
* Achieve 500 reading per second over GPIB
* Use the Fast Buffered Mode to capture up to 4000 readings per second
* Measure the instantaneous peak power level of a pulse modulated signal
