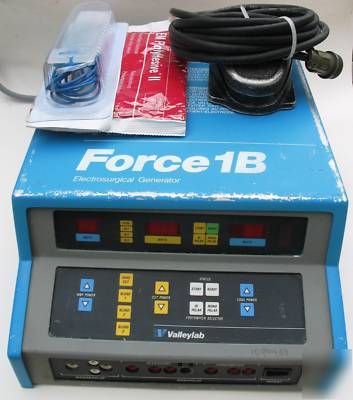

Esu electrosurgical valleylab force 1 w/ foot switch
Used Electrosurgical Valleylab force 1 with bipolar foot switch. Biomedical tested in good working condition.Ready to use.
Also included: 1 pencil with blade , 1 REM electrode , 5 disposable single use Blunt angled blade non- sterile, 5 disposable single use Blunt angled blade sterile and power cord.
* Monopolar, Bipolar Outputs
* Audible and Visual Alarms, including REM(TM) Fault Indicator
* REM(TM) (Return Electrode Monitoring) (Standard)
* Bipolar Foot Switch Included
Normal polarity: intact chassis ground - <10 mA, ground open - <100 mA.
Reverse polarity: ground open - <100 mA. Sink current, 140V applied, all inputs - <150 mA. Chassis source current, ground open - <110 mA
High Frequency Risk Parameters
Bipolar and Monopolar RF leakage current: <150 milliamperes
Measurement frequency: 140 kHz 10 kHz.
Measurement current: 1.5 mA 0.5 mA
Nominal input line voltage is 120 VAC with a full range of 85-135 VAC. Frequency line varies from 45 to 65 Hz
