18" swg 80" cc sharp 1880LV engine lathe, 3" hole, vari
18" Swg 80" cc Sharp 1880LV ENGINE LATHE, 3" Hole, Vari

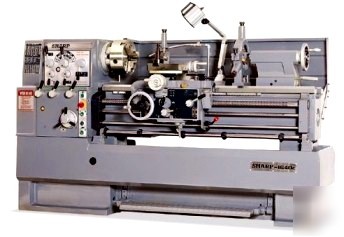

18" Swing 80" Centers Sharp 1880LV ENGINE LATHE, 3" Hole, Variable Speed
MODEL: 1880LV w/Digital Variable Speed
Swing over gap, width: 26-1/2", 10-3/4"
Spindle nose type: D1-8 Camlock
Spindle Speeds (Inf. Variable): 20 - 2,000 RPM
Longitudinal feeds - in/rev (18): 0.002 - .032"
Crossfeed - in/rev (12):0.001 - 0094"
Metric & module threads (17): 0.5 - 7mm
Leadscrew pitch, diameter: 4 TPI, 1-3/8"
Quill travel (graduated): 5-1/2"
7.5 HP Spindle motor (220V, 60 Cycle, 3 Phase)
Requires a transformer for 440 volt operation
Net weight (approximately): 5,300 lbs
10" 3-jaw chuck, coolant system, american toolpost, halogen work
light, 16" face plate, steady rest (6"), longitudinal carriage stops,
tool kit, splash guard, & follow rest.
OPTIONAL EQUIPMENT (Call for prices)
Follow rest, digital readouts, tracer, taper attachment, micrometer
carriage stop, quick-change tool holder, & 5C collet closer.
