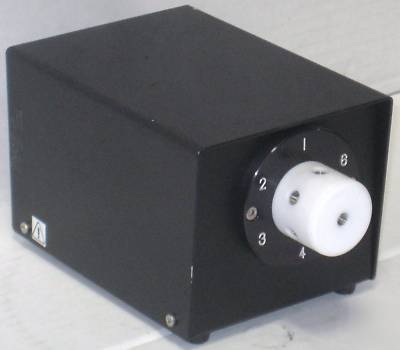

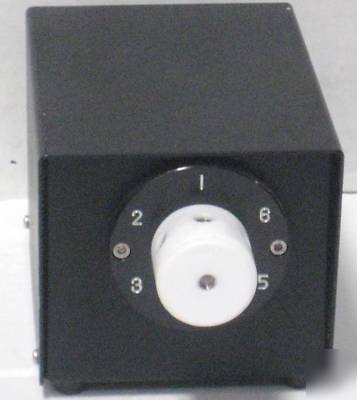

Omnifit 11101 smart actuator electric rotary valve
This listing is for an electric rotary valve / smart actuator.
* Description: Smart Actuator Electric Rotary Valve
Electric rotary valves - Omnifit s electrically operated rotary valves are deigned for use with aggressive and biologically sensitive materials. Each valve has an inert PTFE body and Kel-f rotor, 1.5mm bore size, and 1/4 -28 UNF flat-bottomed ports. Omnifit s 1/4 -28 UNF Gripper or Omni-Lok fittings are ideal for use with these valves. Standard configurations available include 4, 5, 6 and 10 way selection/distribution and 6 port loop inject valves. Complementary Omnifit products such as fittings, tubing and bottle caps are available to satisfy all your fluid system requirements. Please see relevant specification sheets.
* Large Electric Rotary Valves with Smart Actuator
* Inert PTFE body and Kel-F Rotor
* Accepts 1/4 -28 UNF fittings
* 30 psi (2 bar) pressure rating
* Remote control handset with 4 digit LED display
* Clockwise and anti-clockwise rotation
Omnifit s large electric rotary valves are the ideal solution for controlling the movement of fluids in the lab or similar applications where a self contained unit is required. The microprocessor-based Smart Actuator operates either a two-position loop inject or multi-position valve. The Smart Actuator allows precise valve positioning for almost any chromatography application, such as sampling and injecting samples on columns.
The actuator accepts input voltages between 100 and 240 VAC. The actuator s configuration can be set or interrogated without removing the cover, via the remote control unit or the RS232C interface with the supplied software. For automated processing, the actuator can be controlled by a PC through the RS232C interface. Multiple actuators may be controlled from a single RS232C interface using a daisy chain cable that is available as an option.
In addition to the flexibility built into every Smart Actuator, several basic features support the functionality needed for precise valve operation:
* Electronic alignment for accuracy, control and ease of use
* Reversible rotor direction for reduced contamination and fast movement
* Automatic switching based on a timer
* Wetted materials: Body: PTFE / Rotor: Kel-F
* Number of ports Standard 6, 7, 10, or 11 port options
* Connection options: Hardwall tubing (e.g. PTFE) use Omnifit 1/4"-28 UNF Gripper or Omni-LokTM
* fittings or Softwall tubing (e.g. Silicone) use a 1/4"-28 UNF to barb adaptor
* Swept volume @ each position 11106 = 26 L, 11107 = 26 L, 11110 = 29 L, 11111 = 29 L
* Max pressure 30 psi (2 bar) at 250 C
* Electrical: Supply: 100 to 240 VAC / Power: 50 Watts
* Size W = 115mm D = 192mm H = 106mm
