> Bolton 12"X30" high precision cnc lathe turning center

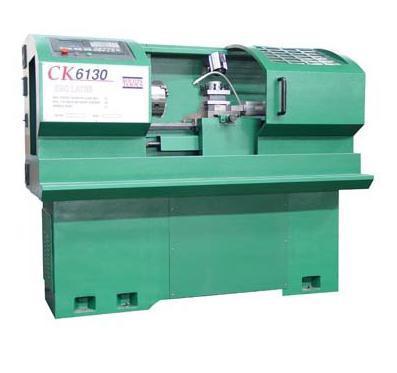

Bolton 12"X30" high precision cnc lathe turning center
3. Teach and playback programming
4. Conversational graphics programming
6. Auto spindle jog during gear changes
7. Vector control spindle drive
8. Simultaneous multiple M-codes (up to 3)
11. Animatde tool path graphics
13. Backlash error compensation
14. Ballscrew pitch error compensation
15. Run-time/Part-count sisplay
16. Ballscrew pitch error compensation
17. Primary CNC M-code controllde
19. Secondary CNC M-code controlled
3. Swing over corss slide - 7"
4. Distance between center - 29.5"
6. Spindle bore - 1-1/2" 7. Spindle nose - MT5
9. Spindle speeds - 80-2300R/MIN
10. (Vector spindle control)100-1600RPM
11. Spindle Motor - AC/4HP 3 phase 220V
12. Cross slide travel(X-axis) - 6"
13. Longitudinal travel(Z-axis) - 25"
14.Rapid traverse(X/Z-axis) - 100 IPM/200 IPM
15. STEP motor torque(X/Z-axis) - 6N.M./12N.M 16. Tailstock quill diameter - 1.77"
19. net machine weight - 2648lbs
