Maxon ec 32 flat brushless 15 watt dc servo motors
MAXON EC 32 FLAT BRUSHLESS 15 WATT DC SERVO MOTORS
Take Advantage of a Super Low Price!

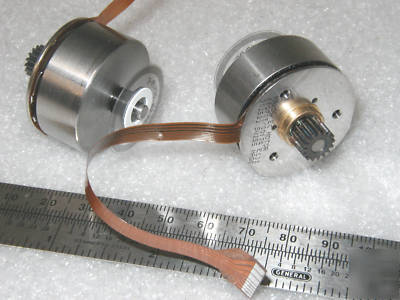

a lot of 2 (two) USED 24V DC precision electronically commutated, brushless DC servo motor assembies manufactured by Maxon of Switzerland, part # EC 302522. This a custom Maxon part number, which is a standard part number EC 267121 with the addition of a dual shaft. It also has a 16 tooth x 9mm diameter pinion gear and optical encoder wheel added. The basic EC 267121 motor is rated at 24 VDC nominal and a no load output speed of the motor is about 4500 RPM at 24V DC. The motor includes built-in hall-effect sensors. These are not simple DC motors and do take drive circuit electronics to operate them. There are many uses for these motors, including robotics and machine control. The motor is 32mm in diameter by 10.3mm long, not including the shafts. This motor weighs about 2.1 oz / 60 grams.
