New "bodine' parallel gearmotor, 115V,,1/6HP / w bonus/

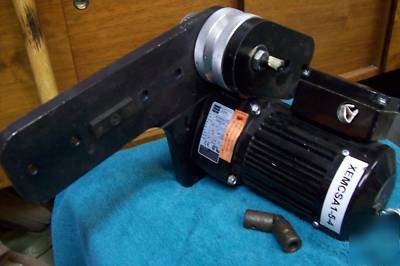

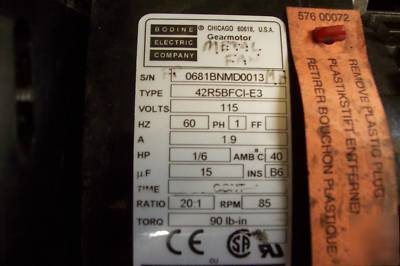

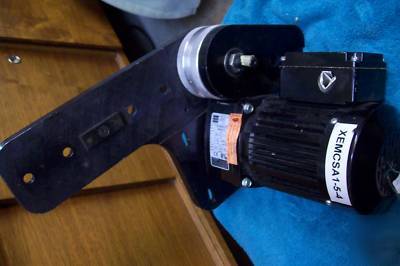

THIS IS A BODINE ELECTRIC GEARMOTOR THAT IS TYPE: 42R5BFCI-E3, S/N: 0681BNMD0013. IT IS 115V, 1 PH., 60 HZ., 1.9 AMPS. IT HAS A RATIO OF 20:1 AND AN RPM OF 85, WITH A TORQUE RATING OF 90 lb.-in. THIS ENTIRE UNIT IS NEW AND WAS SPARE PARTS AT A MILITARY FACILITY.

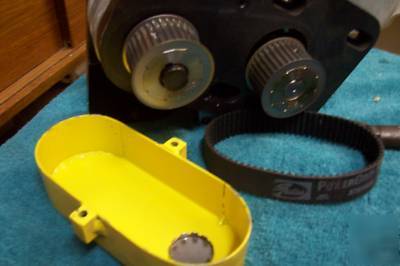

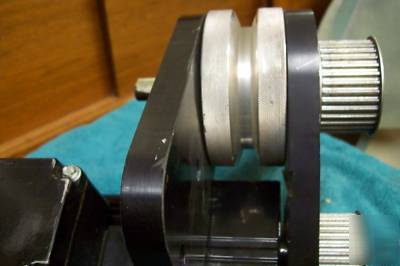

THIS HAS A DRIVE FROM THE MOTOR TO A GATES POWER GRIP HTD PULLEY THAT DRIVES ANOTHER PULLEY THAT HAS A PARALLEL OUTPUT SHAFT. IT HAS A KNERLED GROVED PULLEY LOOKING DEVISE AND THEN TO THE 1/2" OUTPUT SHAFT THAT IS KEYED. THIS ENTIRE ALUMINUM HIGHLY MACHINED DRIVE UNIT IS 5/8" THICK. THE PULLEYS ARE APPROX. 2-1/16" IN DIAMETER. THIS ENTIRE SYSTEM IS REALLY A BONUS TO YOU, OR YOU CAN UNBOLT THE MOTOR AND USE IT BY ITSELF. THIS IS A HIGHLY ENGINEERED UNIT AND VERY EXPENSIVE. THE MOTOR ON THIS UNIT ALSO HAS THE OPTIONAL JUNCTION BOX ON IT. IT ALSO HAS THE METAL FAN FOR COOLING IN THE MOTOR INSTEAD OF THE PLASTIC.
IF YOU HAVE ANY QUESTIONS, E-MAIL ME AND FEEL FREE TO ASK.
THANK YOU FOR L@@KING AT MY ITEM. PLEASE TAKE A L@@K AT ALL MY ITEMS IN MY STORE. I LIST NEW ITMS AT LEAST 4-5 DAYS A WEEK. PLEASE FEEL FREE TO EMAIL ANY QUESTIONS YOU MIGHT HAVE!!!!
ANY QUESTIONS - PLEASE E-MAIL: ZOOBIE88@CHARTER.NET
