Home medical oxygen portable cylinder filling system-90
90 Cu.ft. Supply Cylinder with Transfilling Adapter
FILL ANY STANDARD OXYGEN CYLINDER (CGA-870 or 540)
FOR CONVENIENCE AND TREMENDOUS COST SAVINGS !

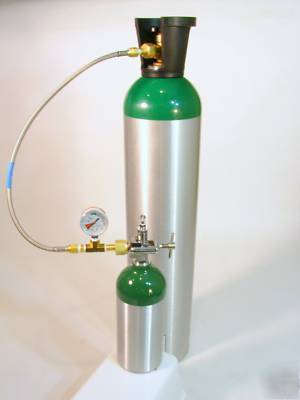

(PLEASE NOTE THAT SMALLER CYLINDER PICTURED IS FOR ILLUSTRATIVE PURPOSES ONLY AND IS NOT INCLUDED)
* M90 - 90 Cu.Ft. aluminum cylinder with standard CGA-540 valve with handle.
* Cylinder specs: 2550 liters, 34 lbs., 7.25" diam., 35" tall, 2216 PSI or 153 bar, delivered empty.
* Provides over 42 hours of oxygen at 1 LPM (standard oxygen mask) or 85 hours with conserving cannula (@ 2 LPM equiv. flow)
* 2 ft. high-pressure braided stainless steel flexible hose. (Longer hoses available)
* 1/4" NPT CGA-540 connection end, and standard CGA-870 yoke style connection end.
* (Adapter may be provided with two 1/4" NPT CGA-540 ends with separate GA-870 yoke adapter for same cost.)
* All parts are new and cleaned for oxygen service, rated to 3000 PSI.
* Same system available with M60 1700 liter cylinder for $420.
* Other cylinder sizes available: 4, 6, 9, 15, 24, 60 CF. Please see The Oxygen Shop for prices
* Aluminum cylinder is 50% lighter than steel and provides 20% more oxygen capacity than standard aluminum cylinders.
* This transfilling system is perfect for home oxygen use or for retail oxygen equipment retailers (DME).
* We will customize the adapter with different end connections, pressure release valves, or longer hose - just call!
