Accessories ed-ec-800POE-01-8 port power over ethernet
Accessories 8 Port Power over Ethernet Swi
Accessories 8 Port Power over Ethernet Swi - ED-EC-800POE-01
8 Port Power over Ethernet Swi

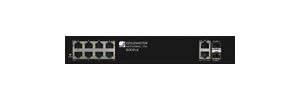

* EdgeConnect 8 port power over Ethernet switch
* Automated setup when used in conjunction with EdgeMarc and EdgeView
* In-line Ethernet power (802.3af) with automatic power device detection
* In-line power for many legacy (non-802.3af) IP handsets
* Per port optional power sourcing
* Full wire-speed forwarding
* L2/L3/L4 traffic management
* 802.1p based Quality of Service (QoS) with priority queuing
* Link aggregation (802.3ad)
* Broadcast, multicast, unknown unicast storm control
* Management/monitoring: SNMP, RMON, http, Telnet, SSH and DHCP
* LAN ports: 8-port 10/100 mbps Ethernet, auto -negotiating, full or half duplex, backpressure flow control at half-duplex, IEEE802.3x flow control at full duplex, RJ45
* Aux ports: 2 x 10/100/1000 mbps Ethernet combo ports
* Complies with IEEE802.3-2005, IEEE802.3af, IEEE 802.1D, IEEED802.1Q, IEEE802.1X
* Tagged VLAN: up to 256 IEEE802.1Q based VLANs
* 5.6 gbps aggregated throughput with full wire speed forwarding
* Support IEEE 802.3af with maximum of 15.4W per port and a total of 70W for the switch
* Regulatory: CE Mark, FCC Class A, CISPR Class A, EN 6100-4-2/3/4/5/6/8/11, UL/CUL (UL 60950-1, CSA 22.2 No. 60950-1), CB (IEC60950-1, EN60950-1)EDEC800POE01
