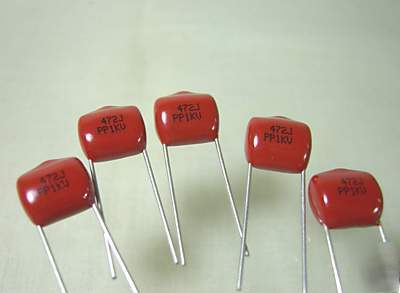

20 ppn 1KV 0.0047UF 4700PF capacitor j 5% non-inductive
They are special higher quality than normal others, insulation at least 1000Mohm, and working temperature at -40~+125C.
Sample tested on my HP LCR meter and D=0.04%, /Z/=89.9 @10Khz, D=0.05%, /Z/=89.9 @100Khz, D=0.07%, /Z/=89.8 @1.0Mhz
The outside dimension 12.5x5.0x8.5mm (WxTxH), lead pitch 10.0mm, lead lenght 27.0mm
