Trinocular microscope double bar microscope w/ ccd came
Trinocular Microscope Double Bar Microscope w/ CCD camera
Brand New Trinocular Microscope Double Bar Microscope w/ CCD Camera, video adaptor ringlight

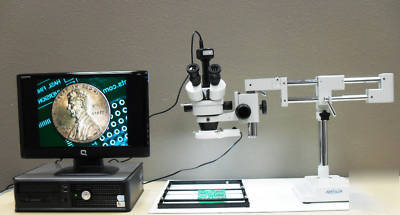

This is a brand new, SZM7045TR Double Bar boom stand microscope w/ CCD camera. High quality stereo trinocular microscope with Boom Stand. Great for working and viewing your component w/ a video output to plug into a regular or LCD TV. Specially designed to inspect component on your PCB boards with fine pitch IC's and other applications.
Unlike a compound microscope that offers a 2-dimensional image, stereo microscopes give the viewer an erect (upright and un-reversed) stereoscopic (3-dimensional) image. This is particularly useful for biologists performing dissections, technicians repairing circuit boards, paleontologists cleaning and examining fossils, or anyone who needs to work with their hands on small objects.
* Crystal sharp pictures. A necessary tool for SMT/SMD circuit boards inspection and other applications.
* Continuous zoom from 7X to 45X. Optional object lenses of 0.5X and 2X available.
* Adjustable rubber eye guards.
* Video/camera trinocular port. Video and photo adapters optional. Matching high resolution color CCD video camera available.
* Boom stand included for maximum versatility and extended working area. Great for working with large circuit boards.
* Fluorescent ring light is included. Even and bright illumination onto the working area.
* Heavy-duty quality metal construction with both of the microscope body and boom stand.
* Easy focusing and zooming control knobs on both sides of the microscope
* High resolution CCD color video camera, 1/3" CCD sensor, 420 TV Lines, 768(H)x494(V) pixels, 525 interlaced scan, 60 frames/second, AGC on/off, SNR>46dB, Gamma=0.45, 1.5 Lux. 12VDC power supply, 1.85W.
* Microscope Single bar boom Stand
* CCD camera and video adaptor
* (1pc) ringlight w/ spare bulb light (110v)
Even temperature distribution. CPU closed loop temperature control, digital display, zero Voltage heater switching. Dedicated power and heating switches. ESD safe. External temperature calibration. Hinged hood creates an oven like environment for reflow. Two heating states optional (Pre-heating reflow)
Click for full size image.Click for full size image.Click for full size image.Click for full size image.Click for full size image.Click for full size image.Click for full size image.Click for full size image.Click for full size image.Click for full size image.
* All our products carry a standard one year warranty. Service or repair will be done in the US.
* Consumable parts, like all Heating Elements, will not be covered by this warranty, but replacement parts can be purchased from us.
* The items must be returned in the original packing box and received in "like new" condition.
* Please allow up to 10 business days for return to be processed.
