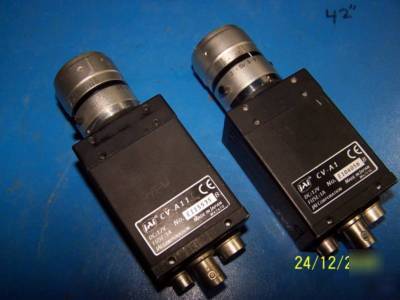

> Jai prograssive scan cv-A1 RS232C + lens 35MM 1:1.9
Jai prograssive scan cv-A1 RS232C + lens 35MM 1:1.9
Please check article National Instrument : Interfacing the JAI CV-A1 With the IMAQ 1409
http://zone.ni.com/devzone/cda/tut/p/id/3526
Compact 1/2 monochrome progressive scan camera
UV version available (CV-A1 UV)
1392 (h) x 1040 (v) 4.65 m square pixels
16 frames/second with full resolution in continuous operation
Increased frame rate with vertical binning and partial scan
Increased sensitivity with H and V binning
Exposure time from 75.9 s s to 116 ms using Pulse Width Control mode
Programmable exposure from 75.9 s to 59.8 ms
Frame-delay readout mode for multiplexed readout of up to 3 cameras
Smear reduction readout mode
LVAL-synchronous/-asynchronous operation (auto-detect)
Exposure enable (EEN), Write enable (WEN) and Pixel Clock output
* Setup by Windows NT/2000/XP via serial communication
Specifications for CV-A1 / CV-A1-UV
0.3 Lux (On sensor, max. gain,
Composite VS signal, 1Vp-p, 75
Video signal, 0,7Vp-p (selectable)
Int. X-tal, Ext. HD/VD or random trigger
4V, 75 or High Z (switchable)
Continuous, EPS (Edge Pre-Select), PWC
(Pulse Width Control), Long time exposure,
Smear reduction and Frame-delay readout
1.3H to 1000H (75.9 s to 59.8 ms)
1.3H to 2000H (75.9 s s to 116 ms)
HD synchronous or HD asynchronous
Scanning format, Trigger modes, Readout
modes, Programmable exposure, Shutter,
Gain, Pixel clock output, Sync on/off, Black
level, Manual gain, AGC, Gamma
VD input/output, HD input/output, HD/VD
CE (EN 61000-6-2, EN-61000-6-3),
FCC part 15 class B, RoHS/WEEE
