> Nudam nd-6011 high gain analog input module
Nudam nd-6011 high gain analog input module

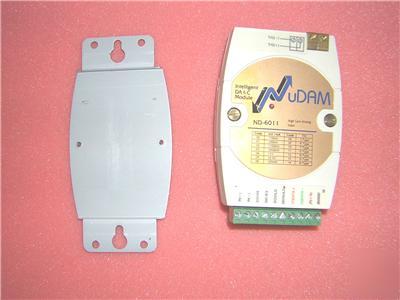

NUDAM ND-6011 HIGH GAIN ANALOG INPUT MODULE
Input Type: Thermocouple, mV, V or mA T/C Type: J, K, T, E, R, S, B, N, C
Voltage Range: 15mV, 50mV, 100mV, 500mV, 1V, 2.5V Current Range: 20mA Isolation Voltage: 5000 Vrms Sampling Rate: 10 samples/sec Accuracy: 0.4% or better Zero Drift: 0.3 V/ C Span Drift: 25ppm/ C CMR: 50/60 Hz@150db NMR: 50/60 Hz@100db Digital Input
High (1): +3.5V ~ +30V Pull-up Current: 0.5mA
Max. input frequency: 50Hz
Min. input pulse width: 0.5 msec
Channels: 2 Open collector to 30V, 30mA max. load
Requirement: unregulated +10V to +30V DC Power Consumption: 0.84W typical
MORE INFORMATION ON THIS ITEM CAN BE FOUND HERE: http:// /nudam/nd-6011.htm
