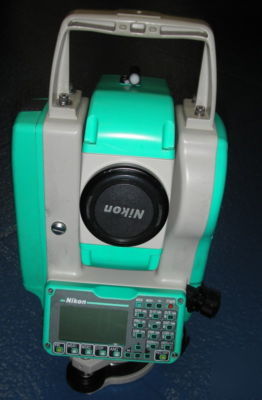

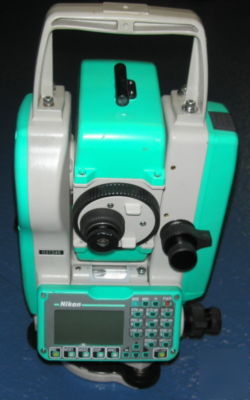

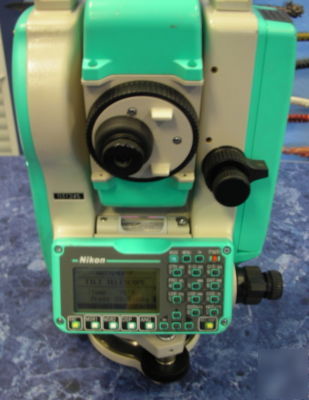

Nikon npl-352 pulse reflectorless laser station level

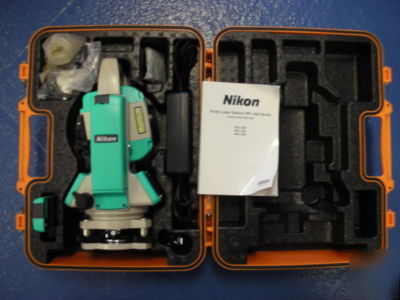

It is in good condition and comes with what you see in the 2nd picture
You will be getting the laser station, 2 batteries, charger, nikon topgun instrument cable in original hard carrying case
* Excellent measurement performance and extreme long battery life.
* Includes powerful onboard software that remains very easy-to-use and easy-to-learn.
* Nikon Pulse Laser Stations are equipped with the unique coaxial focusing system reflectorless EDM technology. Otherwise inaccessible points can now be surveyed reliable and accurate due to Nikon's unique reflectorless EDM technology
* This system focuses the laser on the object that is to be measured. The focusing of the laser beam on the object assures greater accuracy, especially when the measurement beam is oblique to the target surface.
* The focusing system also automatically reduces the risk of erroneous measurements caused by passing objects such as e.g. cars, persons or the leaves of trees or bushes that interrupt the line of sight.
* Through this unique technology the NPL-302 Series pulse laser stations offers superb reliability in reflectorless measurements.
* The size of the laser beam can be examined as the diameter of the laser beam is etched into the reticle.
* Offers a distance measurement accuracy of up to (3 + 2 ppm x D) mm to prisms. The NPL-352 includes a dual-axis compensator.
* Will measure reflectorless to white targets at up to 210 m. Even offering these long range reflectorless measurements they still are equipped with a Class 1 laser.
* Uses Nikon's world-renowned optics, the telescope ensures bright and sharp images in all conditions.
* The NPL-302 Series instruments feature a large internal memory. Up to 10,000 records can be stored. A maximum of 32 jobs can be created to manage the data.
More information about this unit is available is you type nikon npl-352 into google
26x (16x/32x with optional eyepieces)
Effective diameter of objective
40mm/1.57 in. (EDM: 50mm/1.97 in.)
1.6 to 210m (5.3 to 682 ft.)
Range with Nikon specified prisms
(Ordinary haze, visibility approx. 20km/12.5 miles)
1.6 to 300m (5.3 to 980 ft.)
1.6 to 3,000m (5.3 to 9,840 ft.).
1.6 to 5,000m (5.3 to 16,400 ft.).
(No haze, visibility of over 40km/25 miles)
Accuracy (Prism/Precise mode)
(3+3ppm x D)mm ( 20 C to 10 C, +40 C to +50 C)
Accuracy (Reflectorless/Precise mode)
(5+3ppm x D)mm ( 20 C to 10 C, +40 C to +50 C)
20 C to 50 C/ 4 F to +122 F
40 C to 60 C/ 40 F to +140 F
400 to 999mmHg/533 to 1,332hPa/15.8 to 39.3 in.Hg
Photoelectric detection by incremental encoder
Diametrical(NPL-362/352), Single(NPL-332)
Degree: 1/5/10 , Gon: 0.2/1/2mgon, MIL6400: 0.005/0.02/0,05mil
5"/1.5mgon(3"/1.0mgon:NPL-362)
Dual-axis(NPL-362/352), Single-axis(NPL-332)
Both sides(NPL-362/352), Single side(NPL-332)
168 x 173 x 347mm/6.6 x 6.8 x 13.7 in.
5.5kg/12.1 lbs.(NPL-362/352),
Approx. 6.5 hours (Reflectorless mode: 7.0 hours)*3
Approx. 15 hours (Reflectorless mode: 16 hours)
Approx. 27 hours (Prism and Reflectorless modes)
Battery charger for BC-80/65
Approx. 3.0 hours for full recharge
White objects with high reflectivity. Measuring distance may vary depending on targets and measuring conditions.
Measuring time may vary depending on measuring distance and conditions.
At 25 C. Operation time may be shorter if battery is not new.
