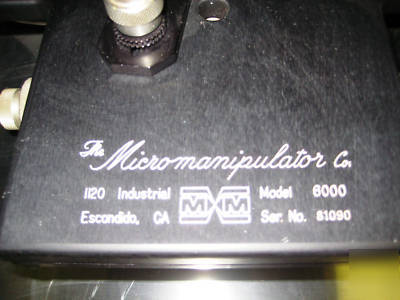

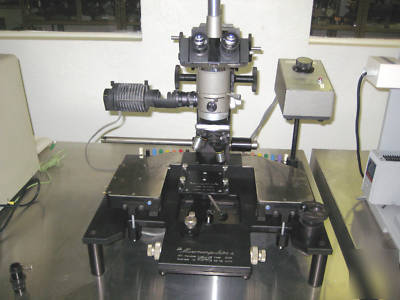

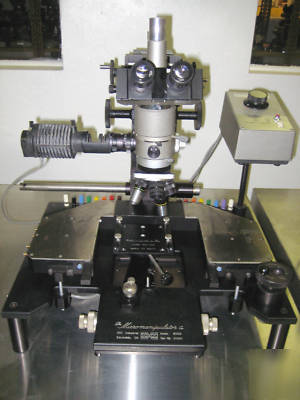

Micromanipulator 6000 test station

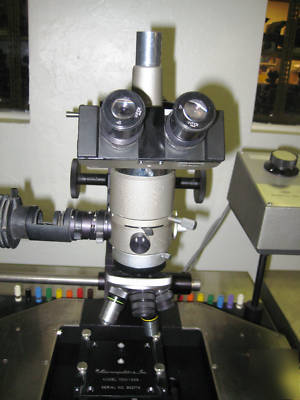

* Olympus Microscope w/ Trinocular Head
* Pair 10X Widefield Eyepieces
* 5 Place Nose Piece (works but a little loose)
* M Plan 20X/ 0.40 n.a. Objective
* Probe Platform Fine Lift Control
* Platen can accept up to eight Magnetic Based Manipulators

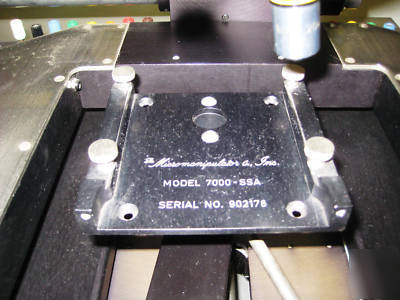

* 7000-SSA Socket Stage Adapter (provides a rigid mount for printed circuit cards)
** Accepts socket stage cards (not included)
Note: A 4"x4" vacuum stage (chuck) may be purchase through micromanipulator if needed!
* Manual Stage Controls are Coaxial X-Y for Single Handed Operation
* Fast lift Lever allows Probe & optics to be raised more than 1" vertically w/ 3 locking up positions for quickly changing wafers or packaged devices
* Microscope Lift Set Point, Totally independent of platen controls, sets microscope lift point!
* Massive Base Plate provides compact size yet good stability, grained, Anodized Finish
* Dimensions & Finish size: 20" (51cm) wide x 18" (46cm) deep x 24" (61cm) high with optics!
* Weight 85 lbs (38.5 kg) ( not including packing )
NOTE: Belts are missing for theta rotation control and stage control! May be ordered from Micromanipulator!
