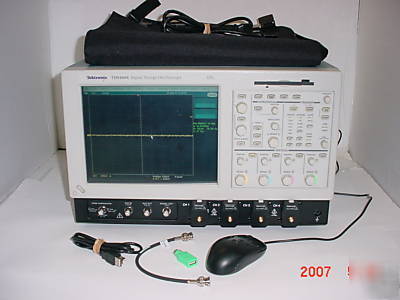

Tektronix TDS6604 digital storage oscilloscope with opt
Tektronix TDS6604 Digital Storage Oscilloscope with options (JA3, SM and ST)
The TDS6000 Series digital storage oscilloscopes provide unprecedented performance along with a complete feature set designed to address design validation, debug, and compliance challenges of next generation computer, datacom, and communications equipment. High bandwidth, high sample rate, and deep memory also provide the ideal solution for data acquisition applications.
* Bandwidths of 6 GHz (TDS6604)
* 20 GS/s real-time sample rate on all four channels with 500 fs/sample interpolated points
* Up to 64 Megasamples on two channels*1, up to 32 Megasamples record length on all four channels with MultiView Zoom function for quick navigation
* MyScope Custom Control Windows Enhance Productivity
* Right Mouse Click Menus for Exceptional Efficiency
* Pinpoint triggering provides the most flexible and highest performance triggering, with over 1400 combinations to address virtually any triggering situation
* Serial pattern triggering up to 3.125 Gb/s with 8b/10b protocol triggering
* Serial data analysis and compliance at rates of 6.25 Gb/s and above
* OpenChoice software with Microsoft Windows XP OS delivers built-in networking and analysis
* Technology specific software solutions provide built-in domain expertise for serial data, jitter, ethernet, DVI, USB2.0, communications, and power measurements
* System includes: Dual processor system (2.8 GHz Pentium 4 and 583 MHz PowerPC), high resolution XGA display, front panel CD-R/W, front panel USB2.0 port, and 1000BaseT network connection
* Option JA3: TDSJIT3 Advanced Software Installed
* Option SM: Serial Mask Testing (156 Standards Masks Supported)
* Option ST: Serial Pattern Trigger
This unit has TRS Calibration thru 5/18/08, item also includes:
* CD Copy of Documentation Set
