> New nm laser LST400S24, safety interlock shutter LST400

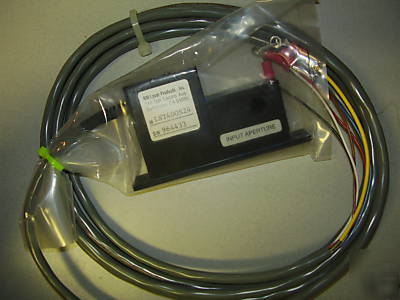

New nm laser LST400S24, safety interlock shutter LST400
This model is designed for use as a safety interlock and for some processing applications. The LST400 provides TTL output position sensors for the open and closed states as standard equipment. The thin body style and 8 mm aperture accommodate many popular laser sources. Compatible system controllers include user built capacitor discharge, PWM current drivers, and controller models CX3000B, CX1100, and CX2450B. Restricted use for this model is only limited to damage threshold and wavelength considerations. It can be used in any orientation w/r to gravity.
* Typical Beam Diameter used for Specs 6.0 mm
* Maximum Shutter Repetition Rate 3 Hz
* Typical Damage Threshold, Aligned Polarization 300 mJ/cm2
* Delay to Begin Opening after Command Open 10 ms
* Opening Time Switching Speed 20 ms
* Delay to Begin Closing after Command Close 10 ms
* Closing Time Switching Speed 20 ms using CX3000B
* Minimum FWHM Exposure Capability 30 ms using CX3000B
* Thermal Power Dissipation Holding Open 4 W
* Thermal Power Dissipation, Repetitive Cycling 8 W @ 3 Hz
* Nominal Magnetic Winding Impedance 15 Ohms
* Cable/Wire Type and Length 18 Inches, 6 leads, 22 g
* Mounting Surface for Thermal Sinking Base Plate
* Position Sensors Logic TTL, Require 5 VDC @ 20 mA
FOR ELECTRICAL DRIVE DATA SPECIFICATIONS: http:// /pdfs/EEdrivedataLST400.pdf
THIS LASER SHUTTER IS NEW NEVER USED - SURPLUS FROM IBM CORPORATION (P/N 516170) - NOT IN ORIGINAL PACKAGING, AND IS GUARANTEED NOT D.O.A. LIST PRICE: $595.00. IF THERE ARE ANY QUESTIONS PLEASE CALL (***)-200-0156, OR HIT ASK THE SELLER A QUESTION. (g1srack)
