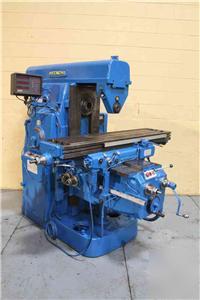

#3 hitachi plain horizontal mill
#3 HITACHI PLAIN HORIZONTAL MILL
SERIAL ............................... 713542-8
MODEL ................................ 3M
NEW .................................. 1973
AREA OF TABLE ........................ 63 X 14
SPINDLE SPEEDS ....................... (36) 25 TO 1500 RPM
LONGITUDINAL AND CROSS FEEDS ......... (16) 21/32 TO 85 IPM
VERTICAL FEEDS ....................... (16) 1/4 TO 31-1/2 IPM
LONGITUDINAL TABLE TRAVEL ............ 33-7/8
CROSS SADDLE TRAVEL .................. 14
VERTICAL KNEE TRAVEL ................. 19-1/2
DISTANCE SPINDLE TO TABLE ............ 0 MIN, 19-11/16 MAX
RAPID TRAVERSE ....................... 164 IPM
DUAL CONTROLS ........................ YES
SPINDLE MOTOR, HORSEPOWER ............ 15
